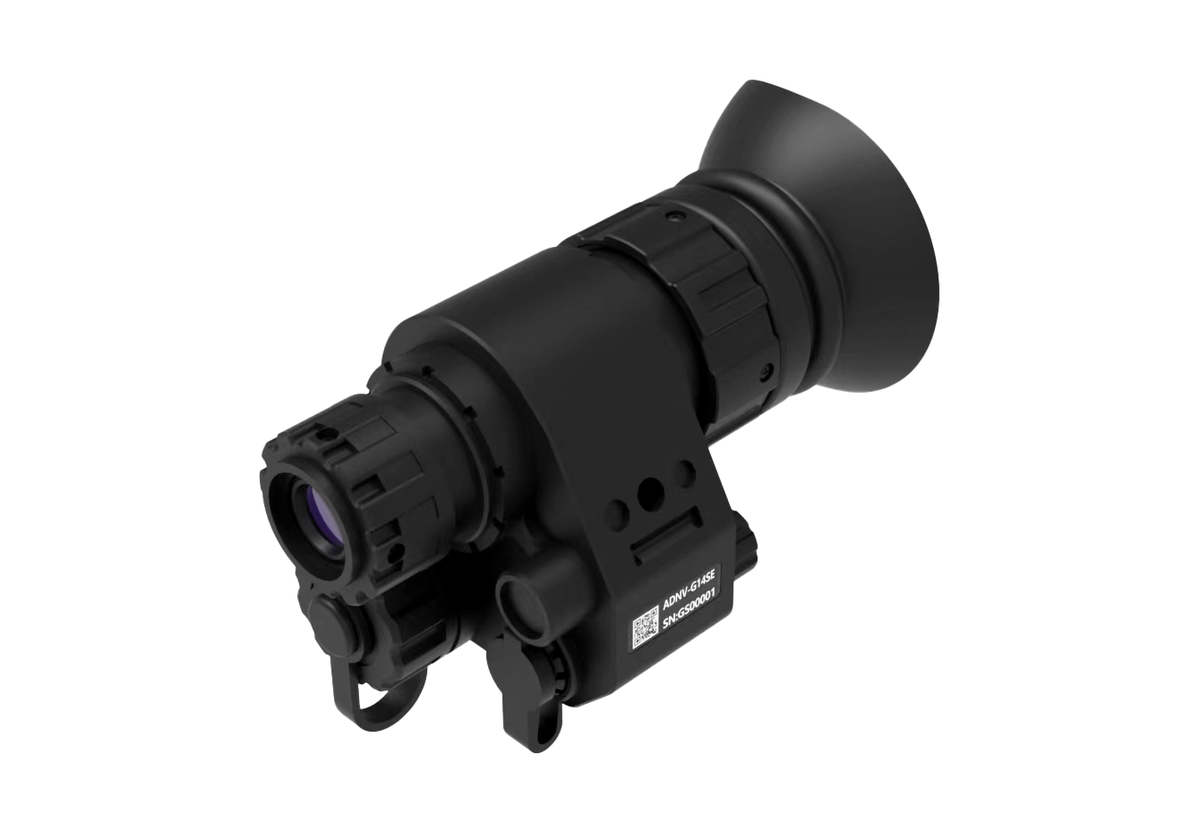

ADNV G14SE Digital Night Vision Monocular

The ADNV G14SE is a compact, head-mountable digital low-light monocular using a 2/3-inch BSI CMOS sensor and an 800 × 600 OLED display. It offers a 1× optical view and high refresh-rate output for observation and mobile use in low ambient light.

Also listed online as: ADNV-G14SE, ADNV G14 SE and G14SE digital NVG. Good Nite Gear offers the same platform under the NVG90 SE name, commonly referred to as the GNG NVG90 SE.

This is a digital night vision device. It forms the image through a CMOS sensor and OLED display rather than an image intensifier tube, so analogue specifications such as FOM and phosphor colour do not apply.

Key features

• 2/3-inch second-generation BSI CMOS sensor with 10.8 micrometre pixel pitch.
• Manufacturer-stated minimum illumination: 0.0001 lux.
• 800 × 600 OLED display.
• 1× optical magnification.
• Manufacturer-stated 50-degree field of view, also specified as greater than 40 × 30 degrees.
• 50 Hz or 100 Hz output modes.
• Spectral response from 400 to 1100 nm.
• IP67 ingress protection.

Technical specifications

• Model: ADNV G14SE.
• Device type: digital low-light monocular.
• Dimensions with 18650 battery: approximately 113 × 57 × 66 mm.
• Dimensions with 16340 or CR123A battery: approximately 95 × 57 × 66 mm.
• Weight including battery: less than 299 g with 18650 or less than 263 g with 16340/CR123A.
• Manufacturer-published operating range: -20 to +55 degrees C.
• Manufacturer-stated resistance to a 1.5 m drop.

Power and interfaces

• Standard power option: one rechargeable 16340 lithium-ion battery.
• Also compatible with CR123A or rechargeable 18650 batteries.
• Reference runtime: more than 16 hours with a 3,400 mAh 18650 battery, depending on settings and conditions.

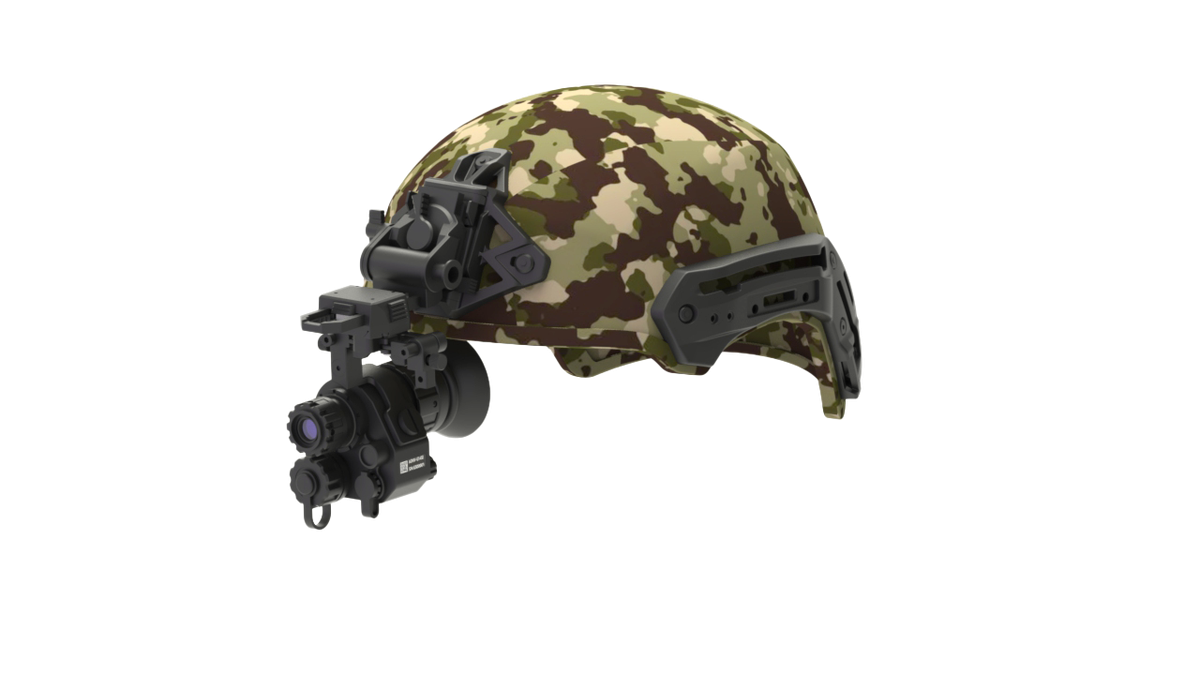

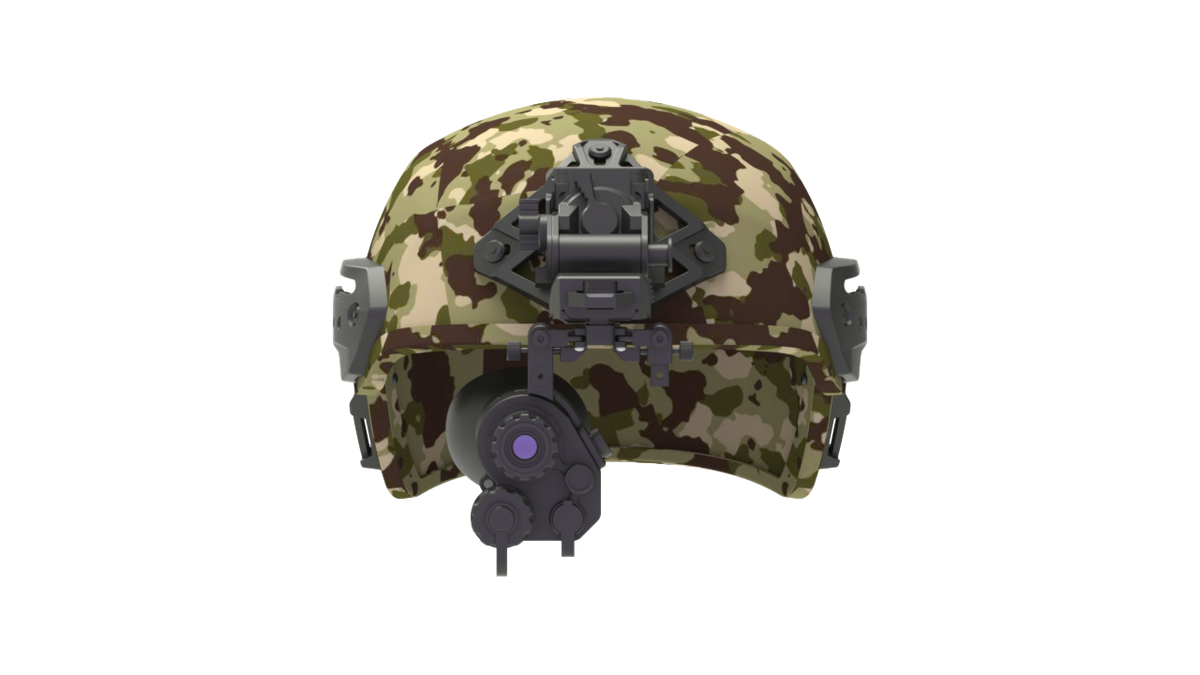

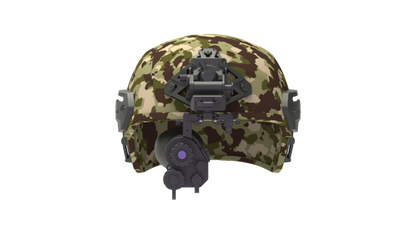

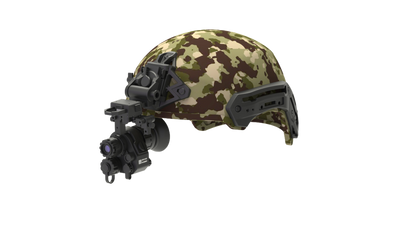

• Dovetail interface for a compatible helmet-mount arrangement.
• Optional RS2 recorder and external battery pack connect through the 9-pin socket and are sold separately.

Warranty and support

• Covered by the Kaelor Works one-year warranty in addition to applicable statutory rights.
• Helmet, helmet mount, RS2 recorder and external battery pack are not included unless specifically stated in the order.
