ARGUS APNVG / PNVG-18 Quad-Tube Panoramic Night Vision
The ARGUS APNVG / PNVG-18 is built using a genuine ARGUS panoramic housing and optical package. It is separate from the independent Kaelor commercial panoramic platform.

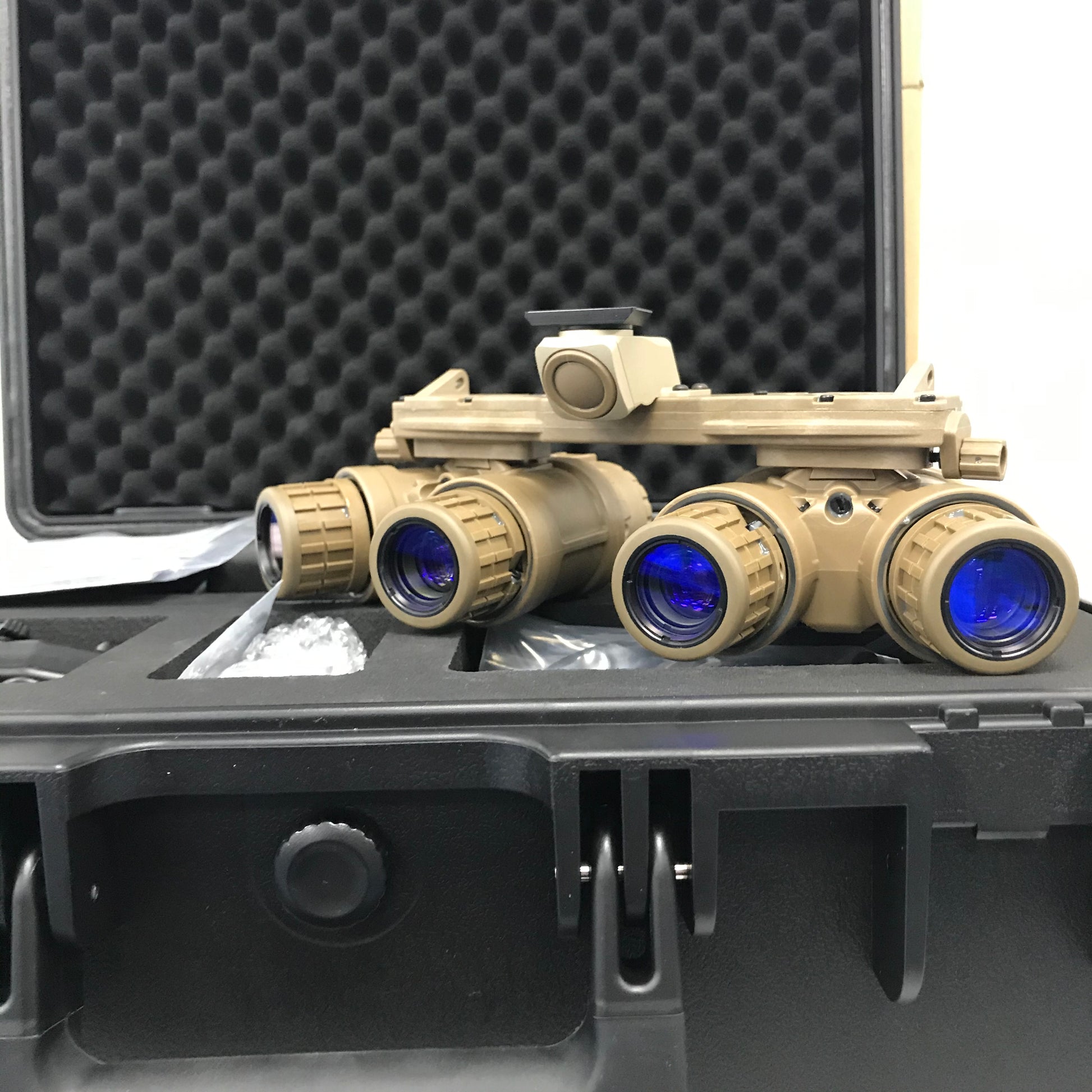

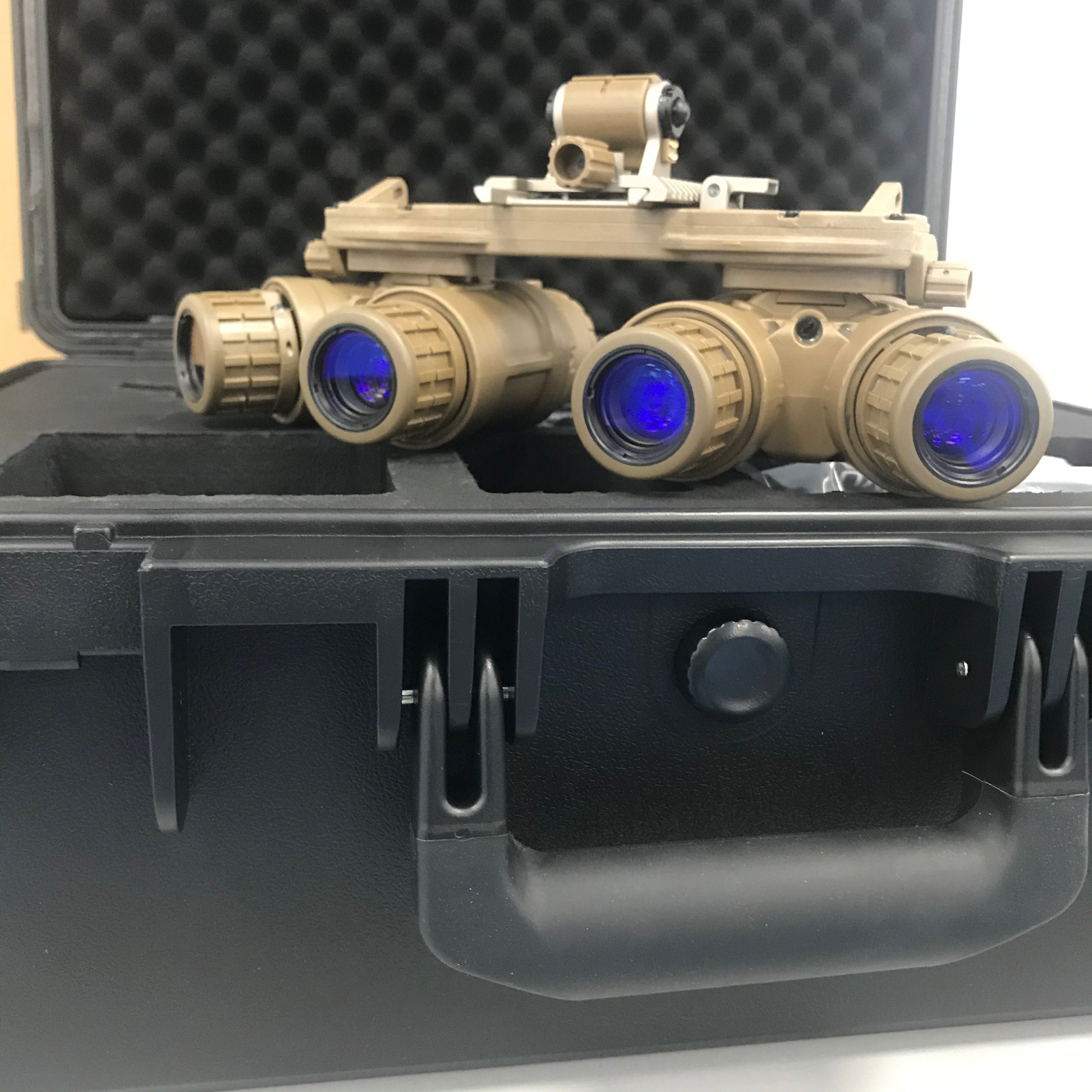

Four 18 mm image intensifier tubes form the panoramic image. The two central, forward-facing channels provide the overlapping binocular view used for depth perception, while the outward-facing side channels extend peripheral coverage. ARGUS specifies an approximately 100-degree total field of view.
Built to order — approximately 7 days before dispatch. This build period covers component sourcing, assembly, collimation, functional testing, vacuum testing, nitrogen purging and order preparation. It is not a delivery estimate.
Tube configurations
- NNVT4 Gen 2+ green phosphor, FOM 1400
- NNVT5 Gen 2+ white phosphor, FOM 1600
- NNVT Gen 3 green phosphor, FOM 1800+
- NNVT Gen 3 white phosphor, FOM 1800+
FOM is calculated from tube resolution and signal-to-noise ratio; it is useful for comparing tube classes but does not describe every aspect of the viewed image. Individual tube data sheets are supplied with the completed device.
Higher-spec tube requests: FOM 2000+ tubes and other specific tube requirements may be available by request. Contact us before ordering to discuss sourcing, tube matching and current availability.
Optical and system specifications
- Platform: genuine ARGUS APNVG / PNVG-18 housing and panoramic optical package
- Tube configuration: four 18 mm image intensifier tubes
- Tube format compatibility: MX-10160 style, or compatible MX-11769-style tubes with the EGAC pigtail removed where appropriate for the build
- Field of view: approximately 100 degrees total
- Image layout: parallel central channels with outward-facing peripheral channels
- IR illuminator: none
- Collimation: completed and function-checked as part of the build
Housing and environmental specifications
- Housing material: polymer
- Housing colour: tan
- Mount interface: BNVIS dovetail or ANVIS ball-detent
- Weight: approximately 798 g with NNVT tubes, excluding the external battery pack; final weight varies by tube and interface
- Water resistance: tested to 2 metres for 30 minutes
- Purge: vacuum tested and nitrogen purged after assembly
Power
- Onboard battery: none
- External power connection: Fischer port
- Power source: included external battery pack and cable
What's included

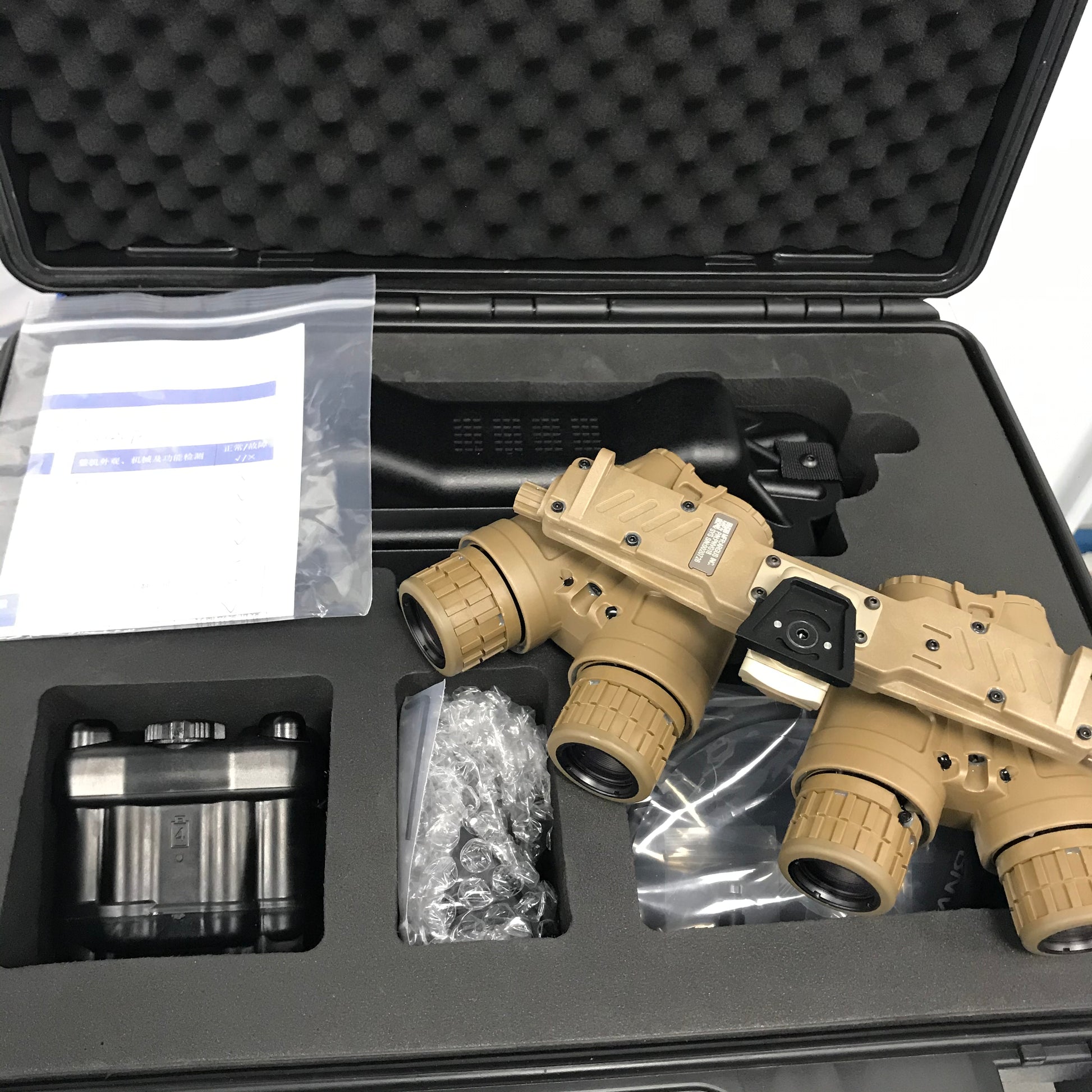

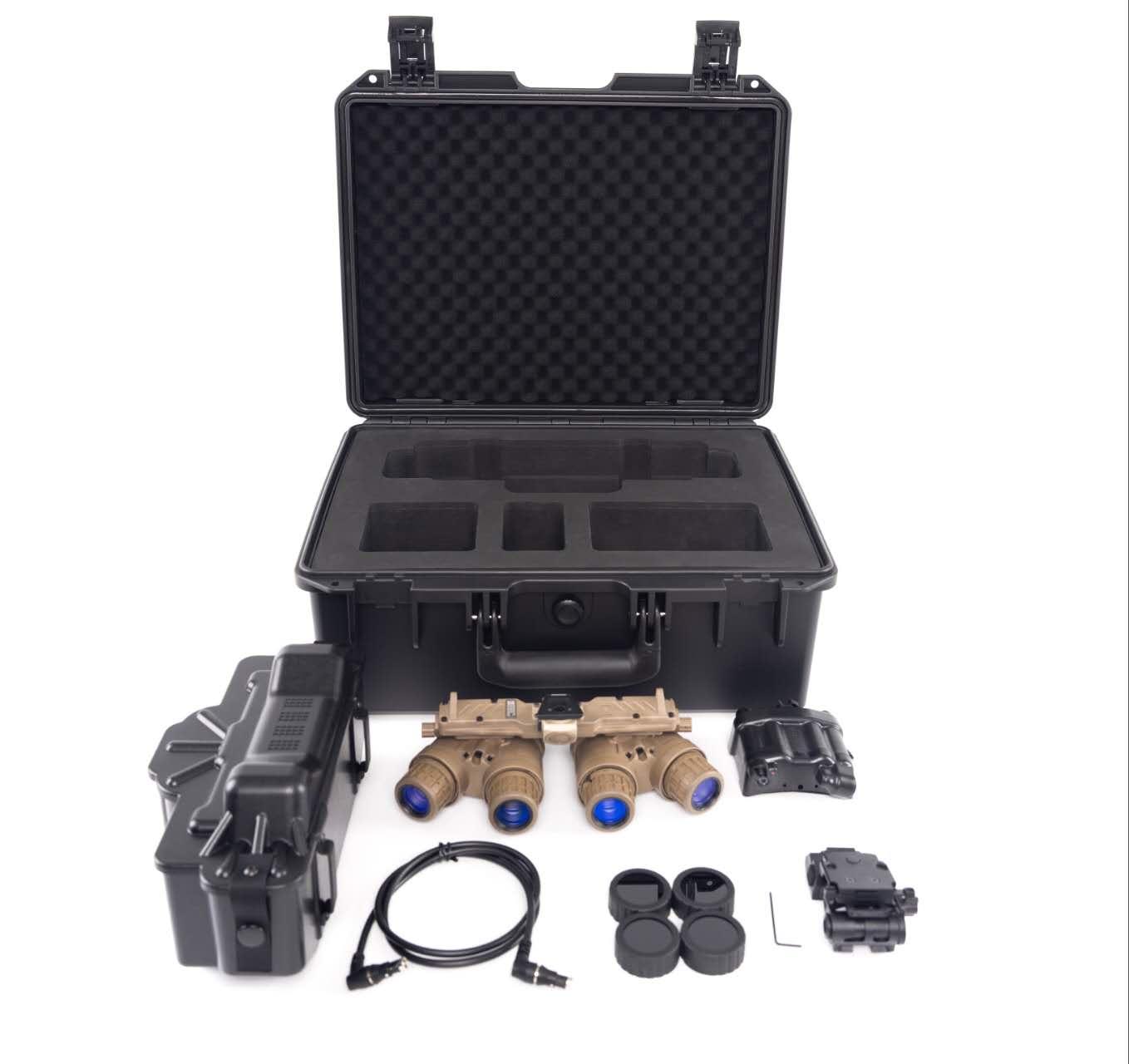

- ARGUS APNVG / PNVG-18 device in the selected configuration
- External battery pack and power cable
- Protective lens covers
- Mount-interface hardware and adjustment tool
- Fitted hard protective case
- Individual tube test documentation
Final tube values, cosmetic matching and completed-device weight depend on the selected intensifier set. The individual tube documentation supplied with the build is the final reference.
