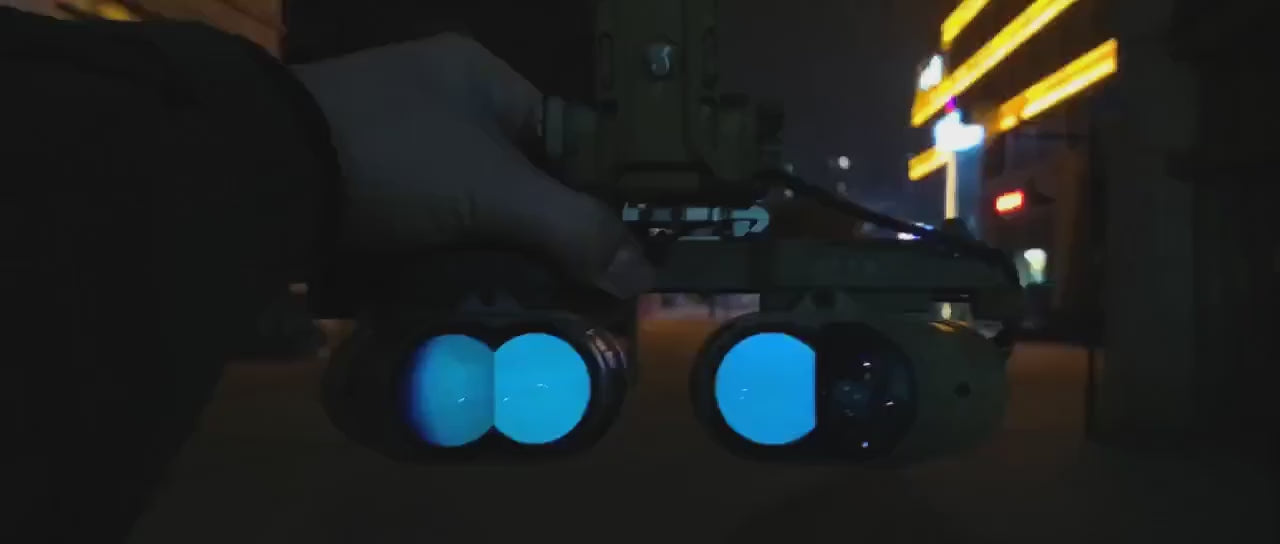

Kaelor KPNVG-18 Quad-Tube Panoramic Night Vision

The Kaelor KPNVG-18 is an independent commercial quad-tube panoramic night vision device built around Kaelor Works' own housing platform and LEN panoramic optical package. It is not manufactured by ARGUS or L3Harris.

Four 18 mm image intensifier tubes form the panoramic image. The two central channels provide the forward binocular view, while the two outer channels extend peripheral coverage. The result is an approximately 97-degree horizontal by 40-degree vertical field of view at 1x magnification.

Built to order — approximately 7 days before dispatch. This build period covers component sourcing, assembly, collimation, functional testing, nitrogen purging and order preparation. It is not a delivery estimate.

Tube configurations

• NNVT4 Gen 2+ green phosphor, FOM 1400
• NNVT5 Gen 2+ white phosphor, FOM 1600
• NNVT Gen 3 green phosphor, FOM 1800+
• NNVT Gen 3 white phosphor, FOM 1800+

FOM is calculated from tube resolution and signal-to-noise ratio; it is useful for comparing tube classes but does not describe every aspect of the viewed image. Individual tube data sheets are supplied with the completed device.

Higher-spec tube requests: FOM 2000+ tubes and other specific tube requirements may be available by request. Contact us before ordering to discuss sourcing, tube matching and current availability.

Optical specifications

• Optical package: LEN panoramic optics
• Tube format: four 18 mm image intensifier tubes
• Field of view: 97 x 40 degrees, ±2 degrees
• Magnification: 1x
• Optical distortion: 3% maximum (optics supplier figure)
• Relative illumination: greater than 75% (optics supplier figure)
• Lens coating: multilayer broadband coating
• Focus: manual, 250 mm to infinity
• Eye relief: approximately 30 mm
• Exit pupil: approximately 8 mm
• Dioptre range: approximately +0.5 to -2.5 D
• Interpupillary adjustment: continuously adjustable from 50 to 85 mm with manual lock

Housing and environmental specifications

• Housing colours: black or tan
• Mount interface: BNVIS dovetail or ANVIS ball-detent
• Dimensions: approximately 155 x 136 x 83 mm
• Weight: approximately 810 g without batteries or external battery pack
• Ingress protection: IP67
• Purge: nitrogen purged after assembly
• Published platform operating range: -40°C to +55°C
• Published platform humidity range: 5% to 95%

Power

• Operating voltage: 2.6–4.2 V
• Battery options: one CR123A cell in the device or the included external four-cell CR123A battery pack
• Published power consumption: less than 0.2 W
• Published runtime: approximately 30–80 hours depending on batteries, tube configuration, temperature and use

What's included

• KPNVG-18 device in the selected configuration
• External battery pack and power cable
• Protective lens covers
• Mount-interface hardware and adjustment tool
• Fitted hard protective case
• Individual tube test documentation

Platform figures above are based on the housing and optical-package data currently available. Tube performance and some operating limits vary by the selected intensifiers; the individual tube documentation supplied with the build is the final reference.
