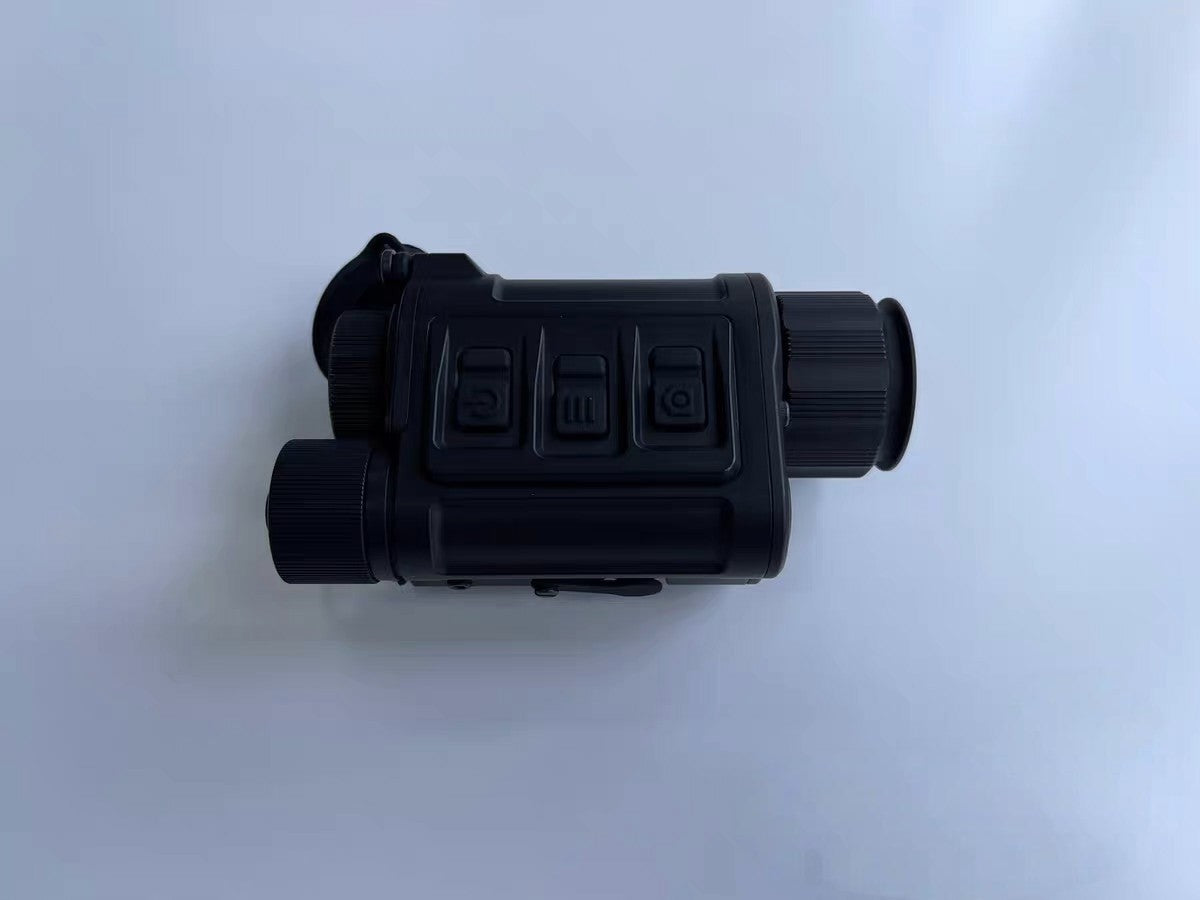

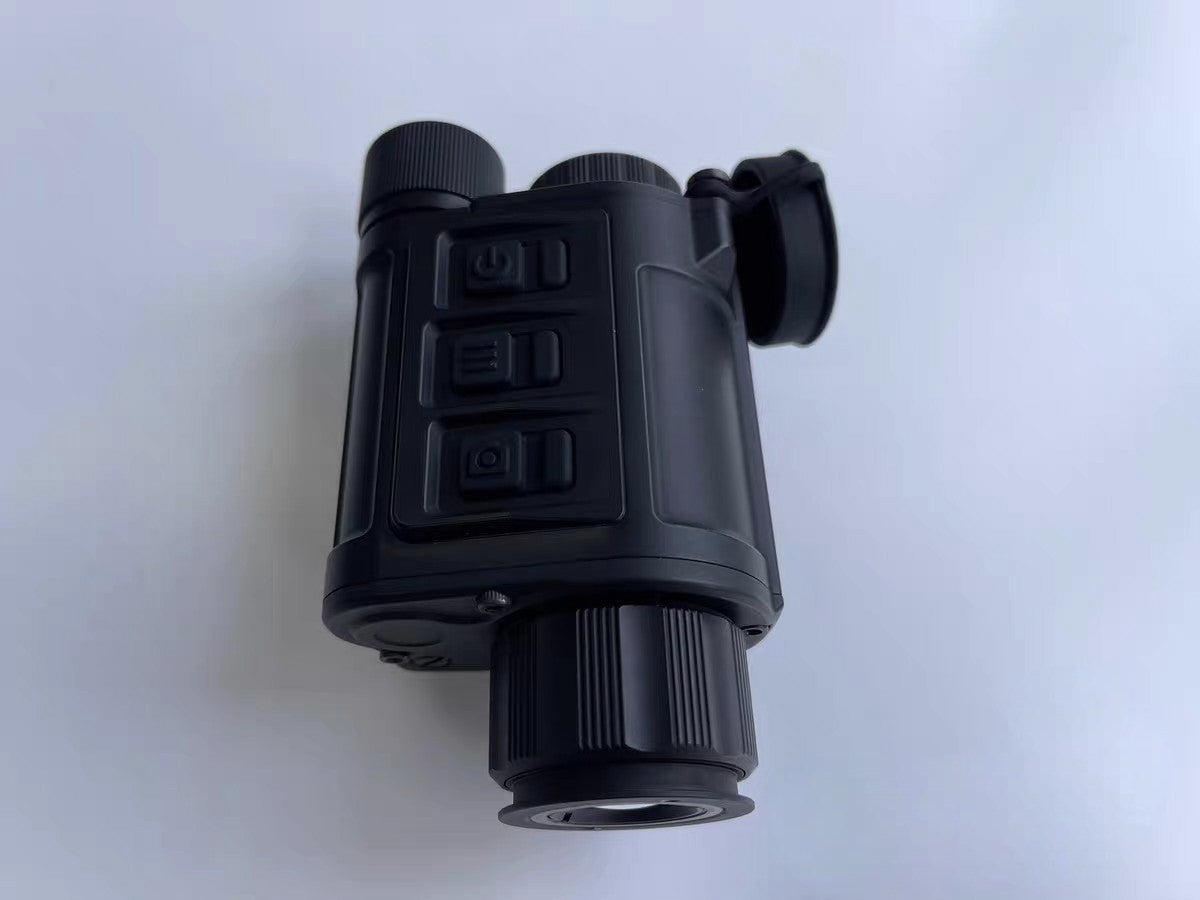

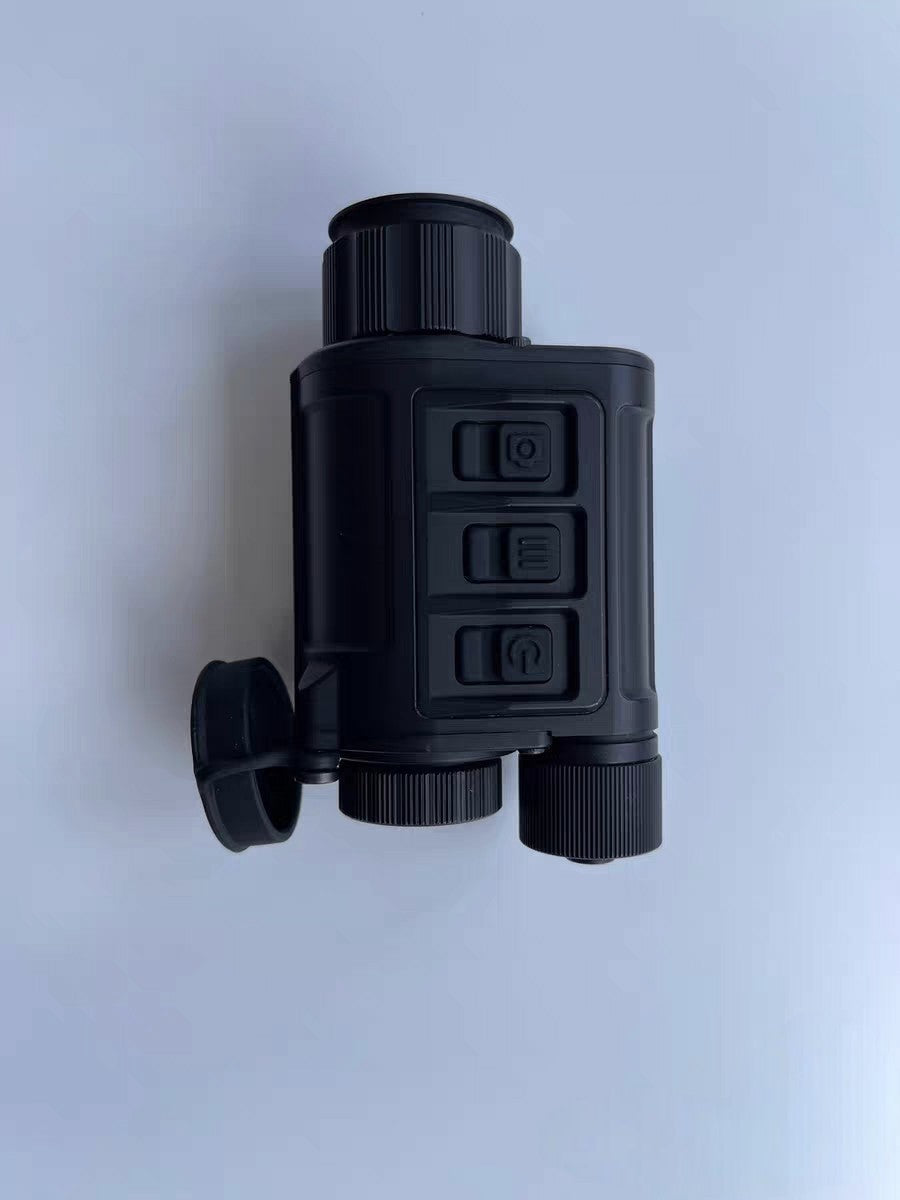

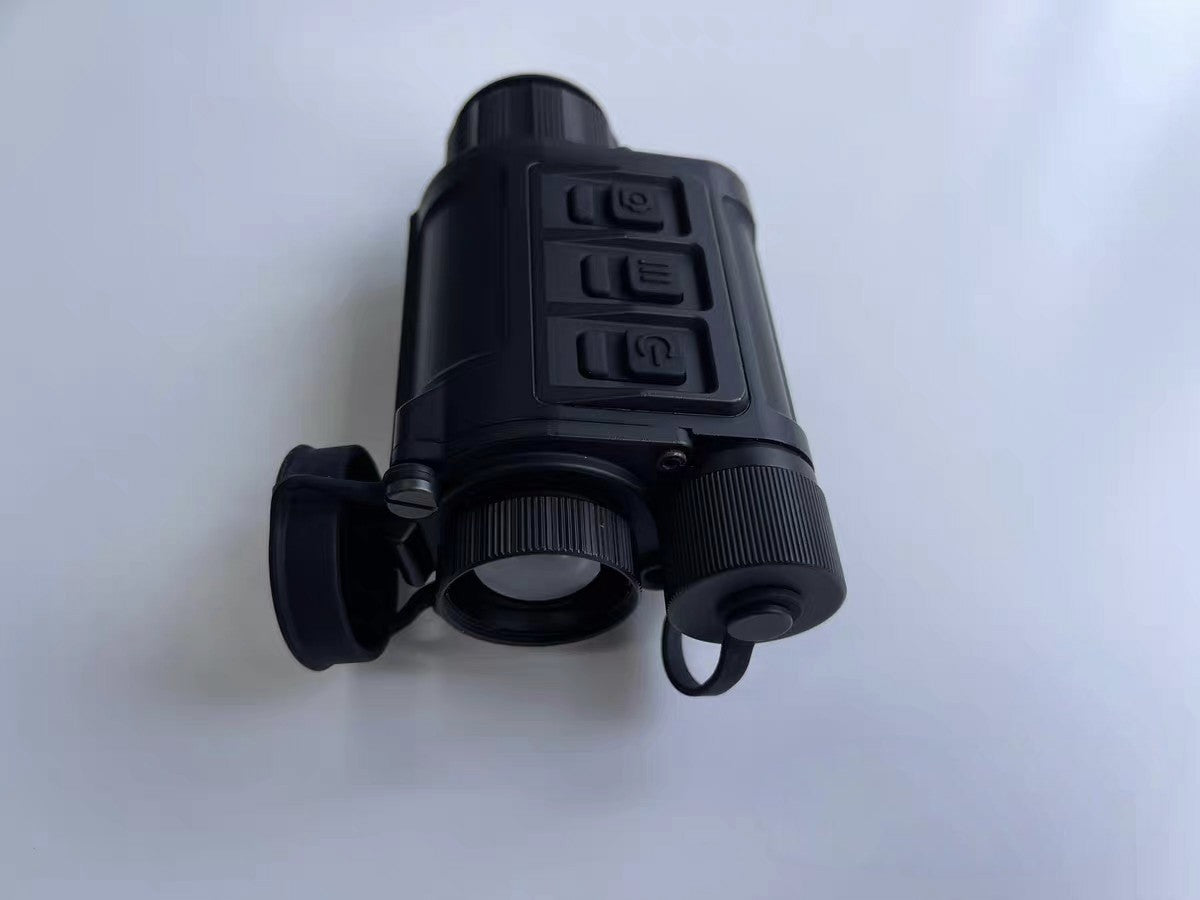

InfiRay PFN640+ V2 (RH25 V2 Platform) Thermal Imager

The InfiRay PFN640+ V2 (also known as PFalcon 640+ V2) is the international-market model we supply from the RH25 V2 hardware platform. It updates the compact multi-role format with a higher-resolution AMOLED display, 60 Hz imaging and USB-C connectivity.

Version supplied: InfiRay PFN640+ V2 international edition, as marked on the retail box; it is not an iRayUSA US-channel RH25 V2. The versions share a hardware platform, but housing finish, firmware features, in-box accessories and warranty route may differ.

Key features

• 640 × 480, 12 µm thermal detector with 60 Hz refresh rate.
• 25 mm F/1.0 manual-focus objective and 1440 × 1080 AMOLED display.
• USB-C for data transfer and compatible external power.
• 64 GB internal storage with onboard photo and video recording.
• Handheld use; helmet, clip-on and dedicated-sight use require compatible fittings.

Technical specifications

• Model supplied: InfiRay PFN640+ V2 / PFalcon 640+ V2 (RH25 V2 platform).
• Sensor: 640 × 480, 12 µm; 60 Hz.
• Display: 1440 × 1080 AMOLED.
• Objective: 25 mm F/1.0, manual focus.
• Power: one rechargeable 18650-format battery; USB-C external power support.
• Connection: USB-C.
• Storage: 64 GB.

Version and warranty

Is this the same as the RH25 V2? It is the corresponding InfiRay hardware platform, supplied here as the international PFN640+ V2 edition rather than a US-channel retail unit. Kaelor Works provides its two-year commercial warranty and handles support for this sale; iRayUSA's US warranty programme is not included. Your UK statutory consumer rights remain unaffected.

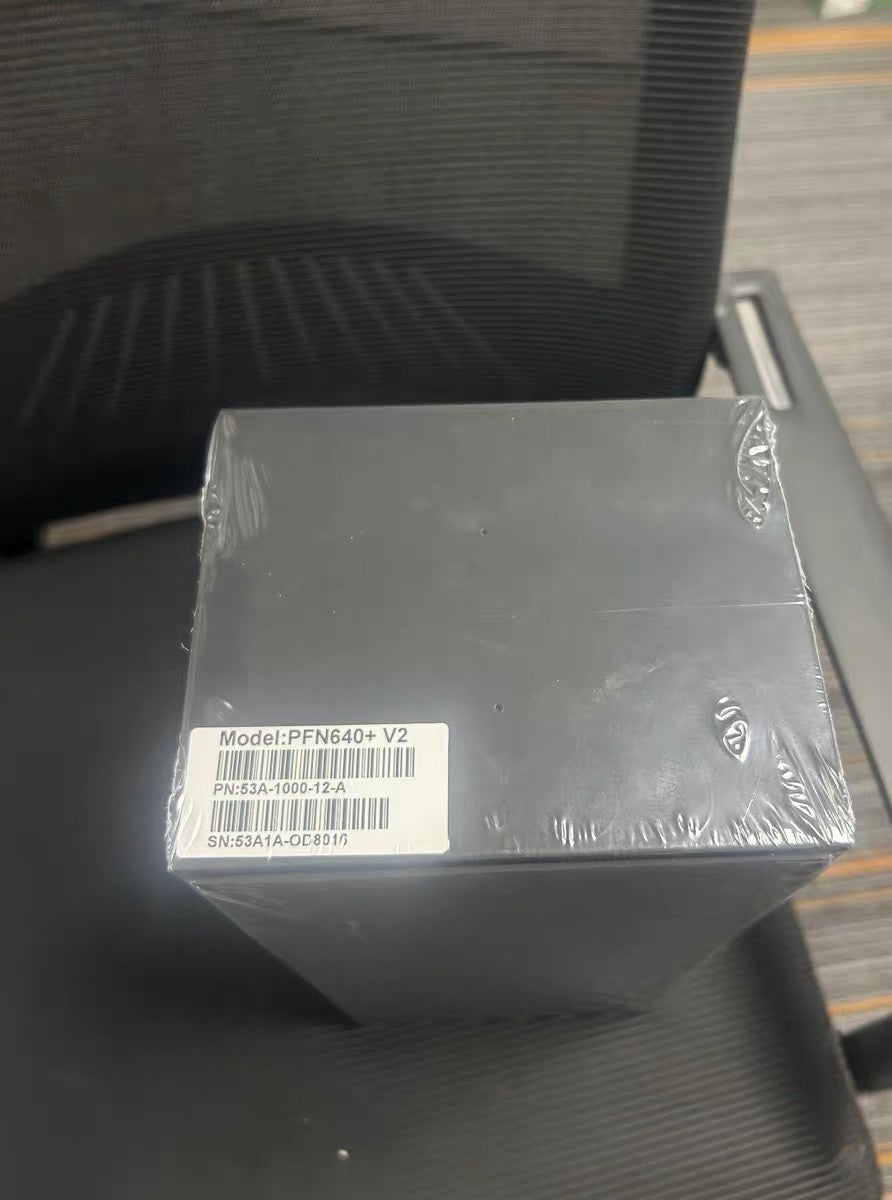

The box-label photograph in the gallery identifies the PFN640+ V2 model. Mounts and other accessories vary by market and batch; please ask us to confirm a particular item before ordering.
