Kaelor KPNVG-18 Articulating Quad-Tube Panoramic Night Vision
Last one available
The Kaelor KPNVG-18 Articulating is a LAN18-platform quad-tube panoramic night vision system with a metal folding bridge. Four image intensifier tubes combine a central binocular view with extended peripheral coverage.

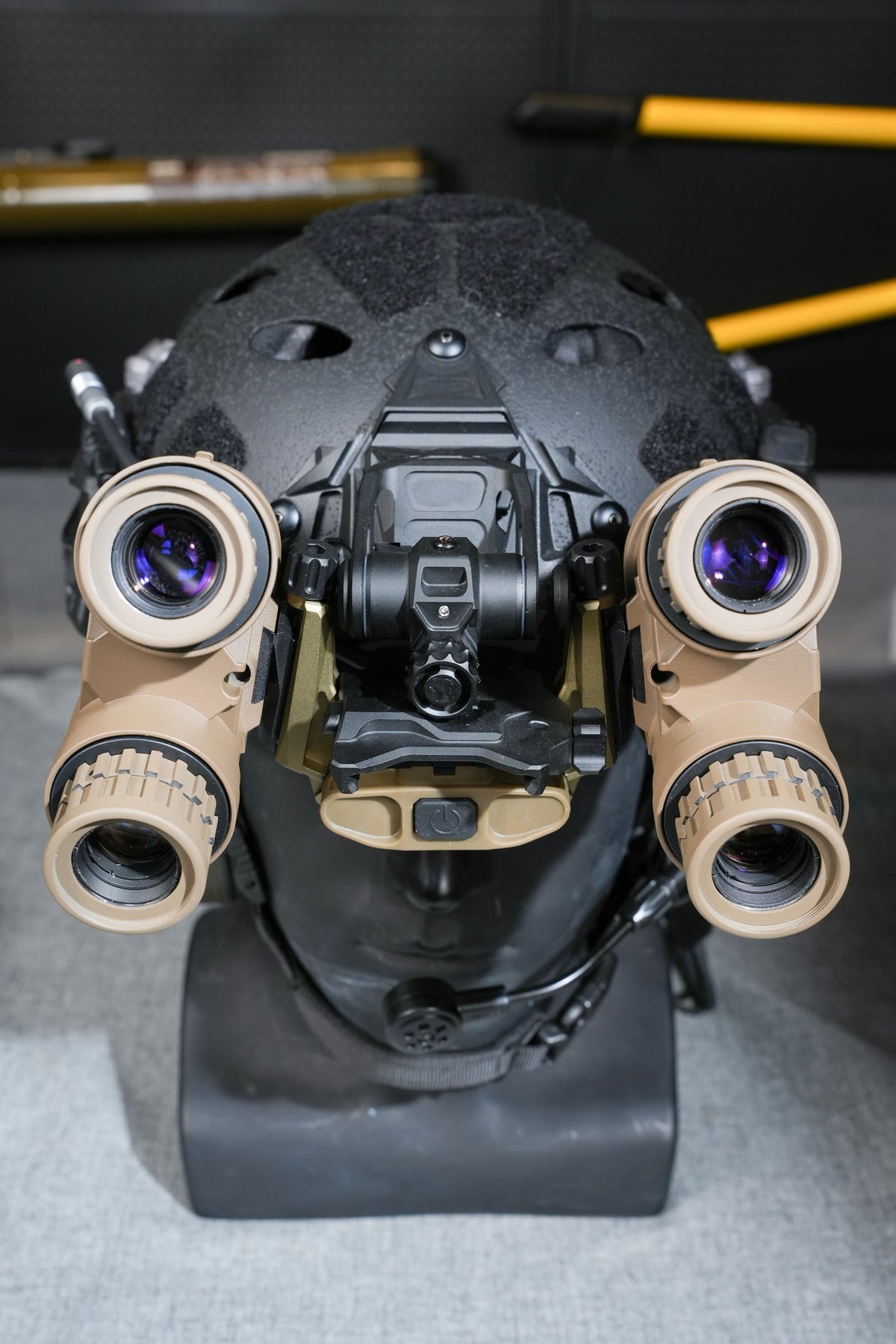

The tan configuration features a dovetail mount interface. The optical pods fold towards the sides of the helmet for stowage, as shown in the product photographs.
Built to order - approximately 7 days before dispatch. This preparation period covers component sourcing, assembly, collimation, testing and order preparation. Delivery time is additional.

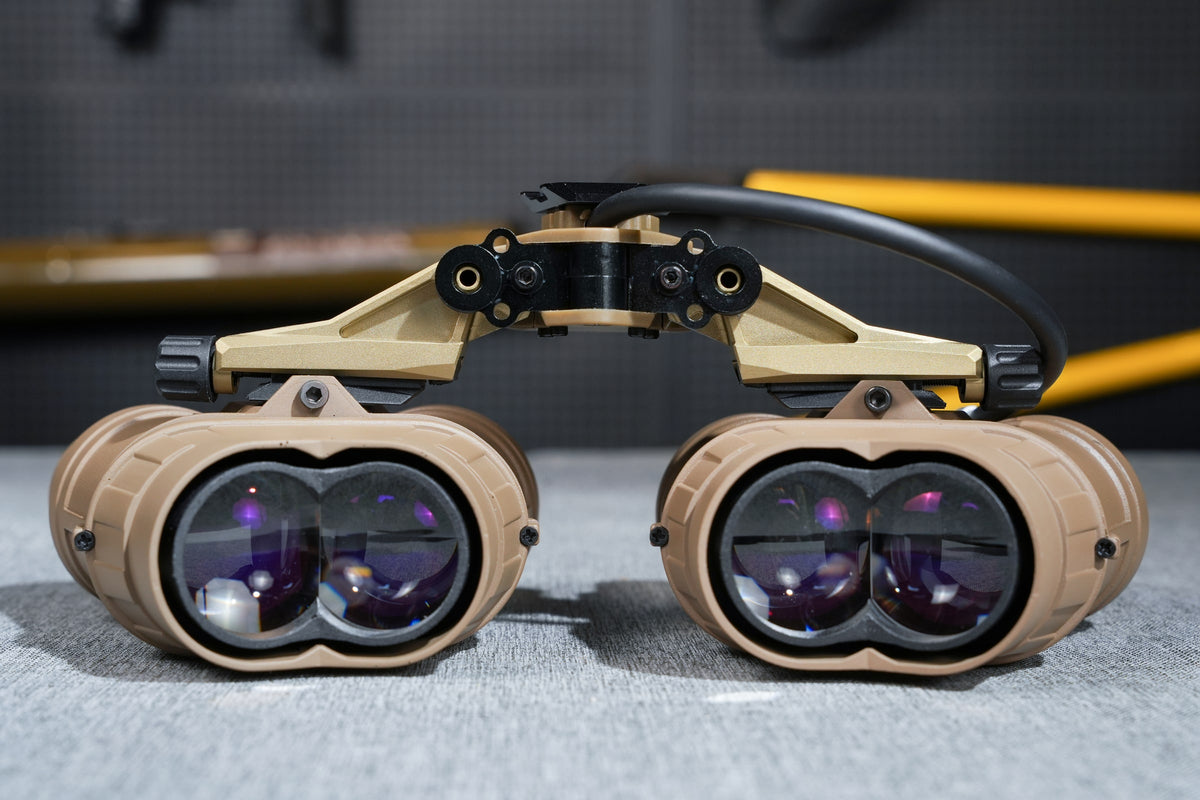

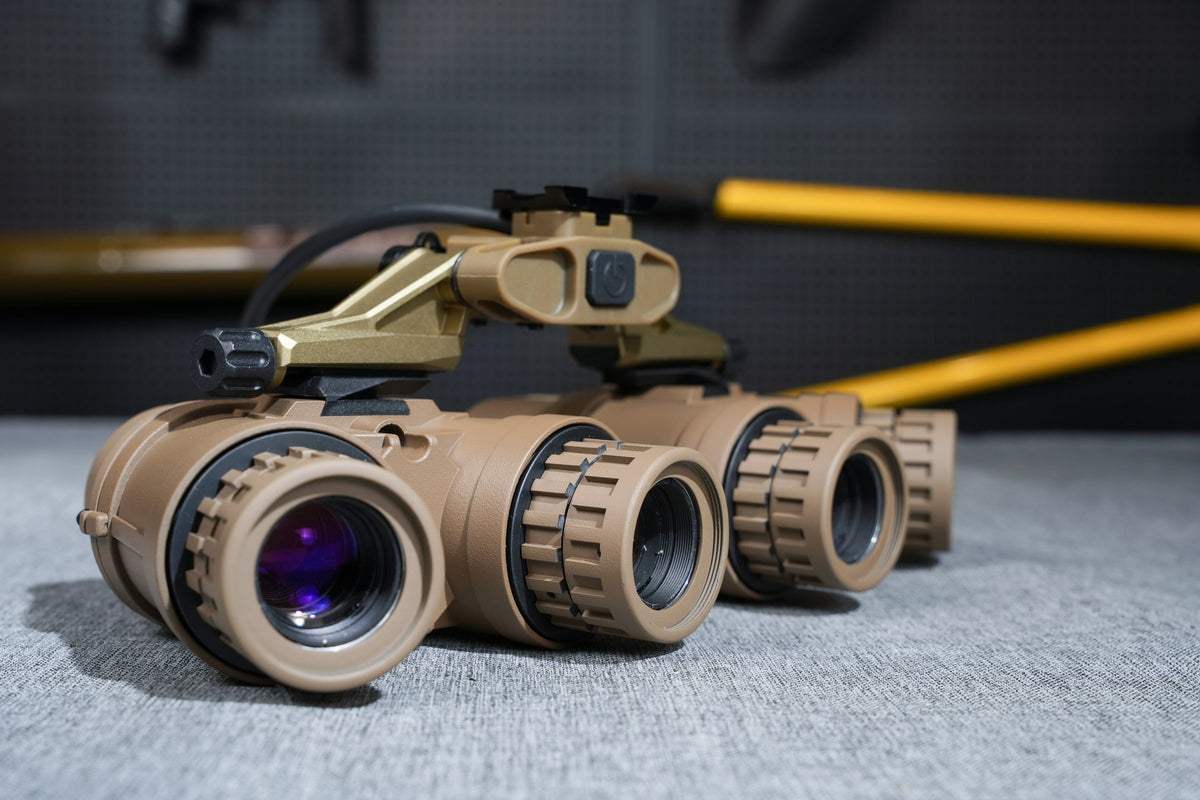

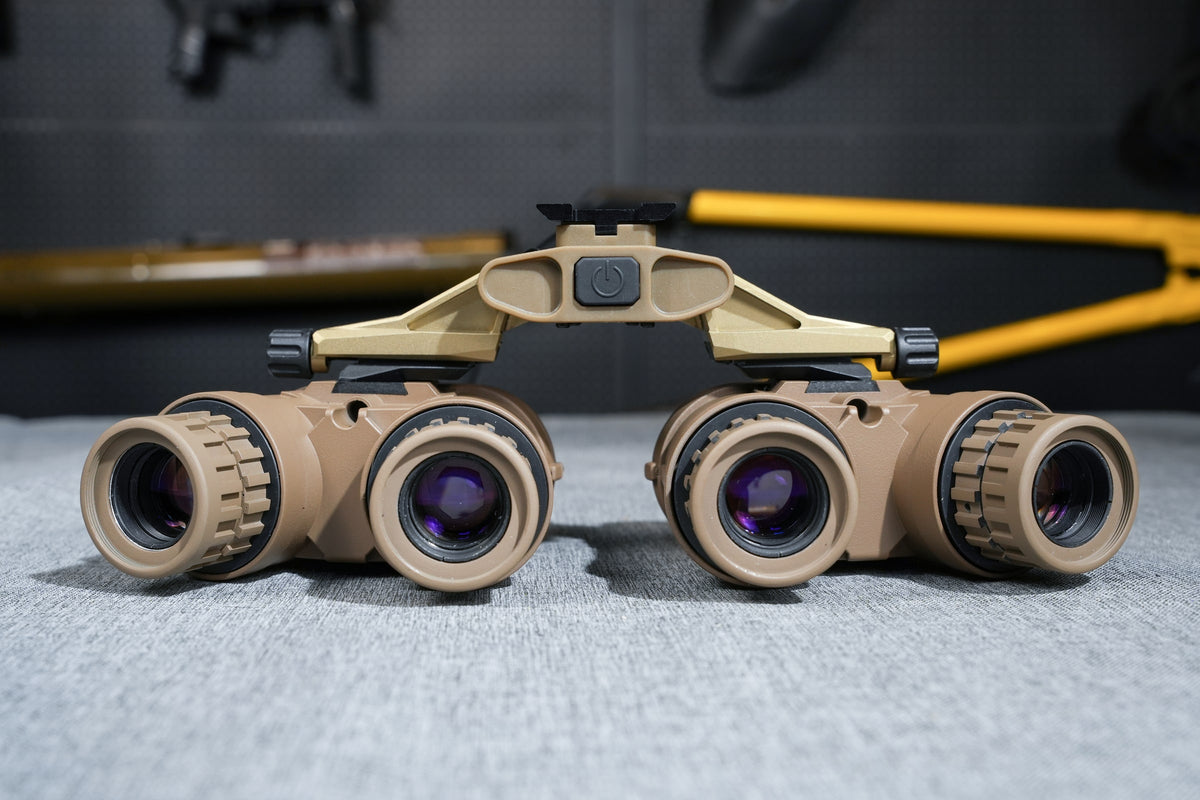

Metal articulating bridge

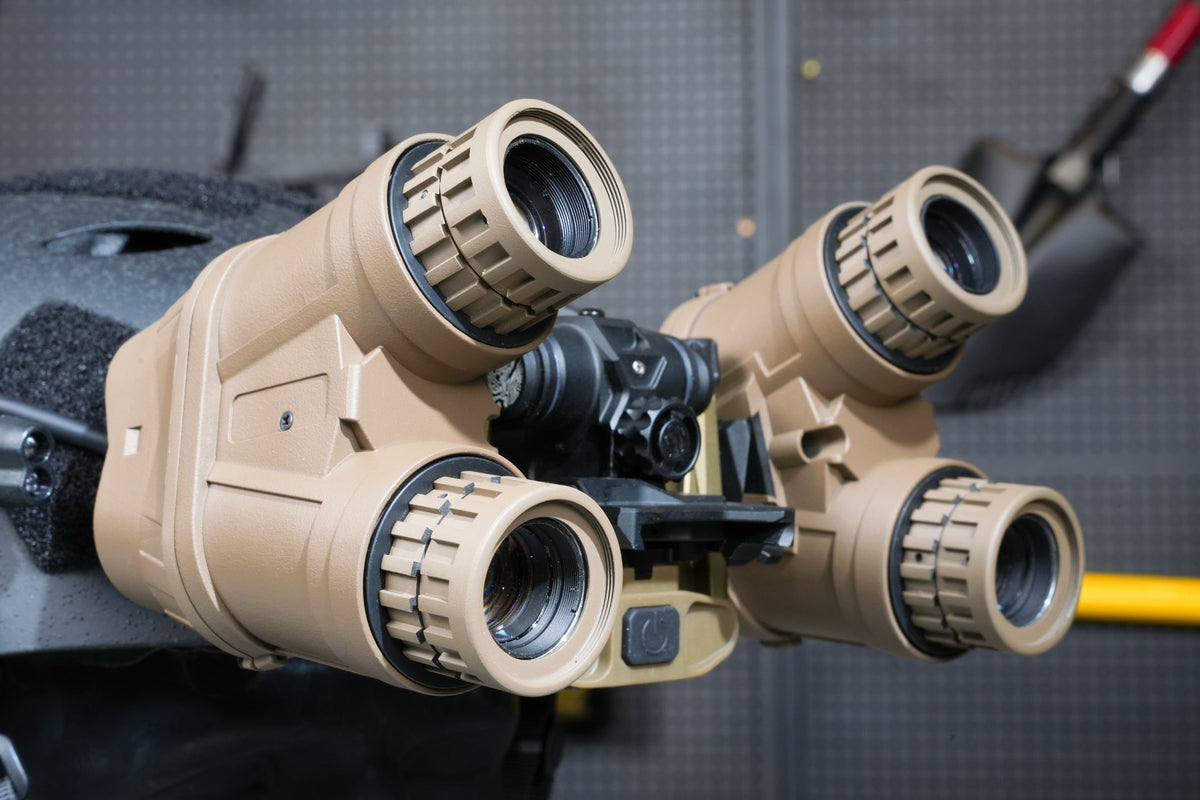

The metal bridge distinguishes this configuration from the fixed-bridge KPNVG-18. Its folding layout allows the optical pods to move from their viewing position into a compact stowed arrangement.
Tube configurations
- NNVT4 GEN2+ Green · FOM 1400.
- NNVT6L GEN2+ White · FOM 1600.
- NNVT Gen 3 Green · FOM 1800+.
- NNVT Gen 3 White · FOM 1800+.
For FOM 2000+ or a particular tube specification, discuss your build before ordering.
Configuration
- Platform: LAN18 quad-tube panoramic night vision.
- Imaging system: four analogue image intensifier tubes.
- Bridge: metal, articulating.
- Housing colour: tan.
- Mount interface: dovetail, for use with a compatible G24-style dovetail mount.
Technical specifications
- Ingress protection: IP66.
- Operating temperature: -40 to +50 degrees C.
- Weight: approximately 797 g including image intensifier tubes and optics.
- Power source: external battery pack using 2 x 3 V CR123A batteries.
What's included
- KPNVG-18 Articulating in the selected tube configuration.
- External battery pack and power cable.
- Fitted hard protective case.
Professional Assembly & QC
Each complete system is assembled and checked before dispatch. Checks include optical cleaning, infinity focus and dioptre calibration, individual panoramic collimation using dedicated equipment, and complete system and functional testing.

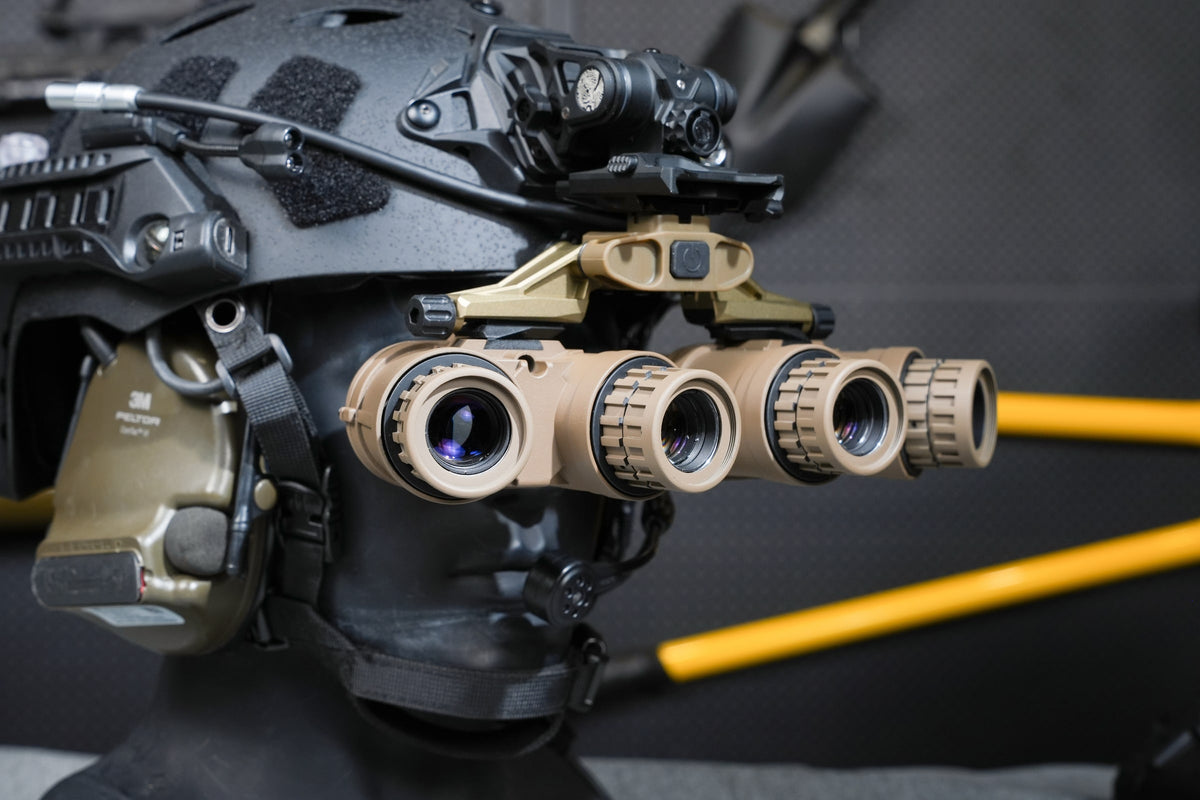

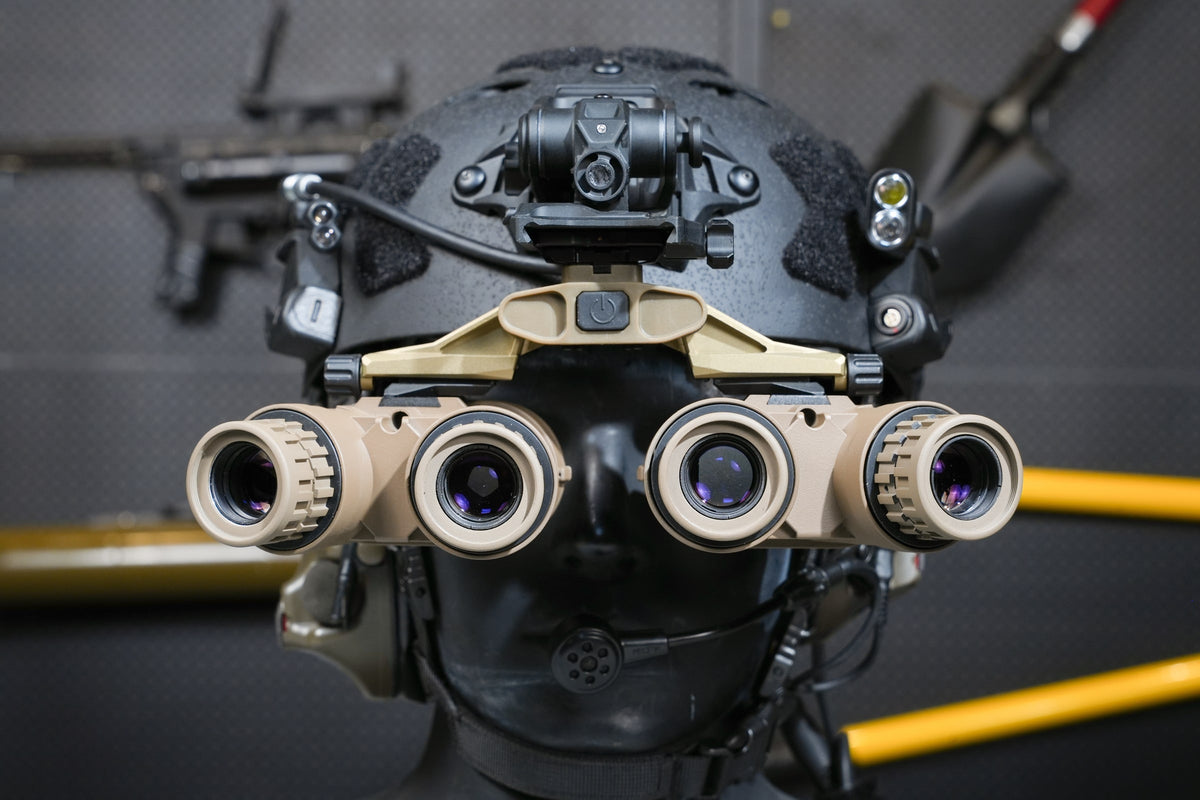

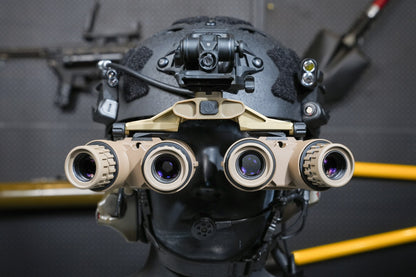

The helmet and helmet-mounted accessories shown in the photographs are display equipment.

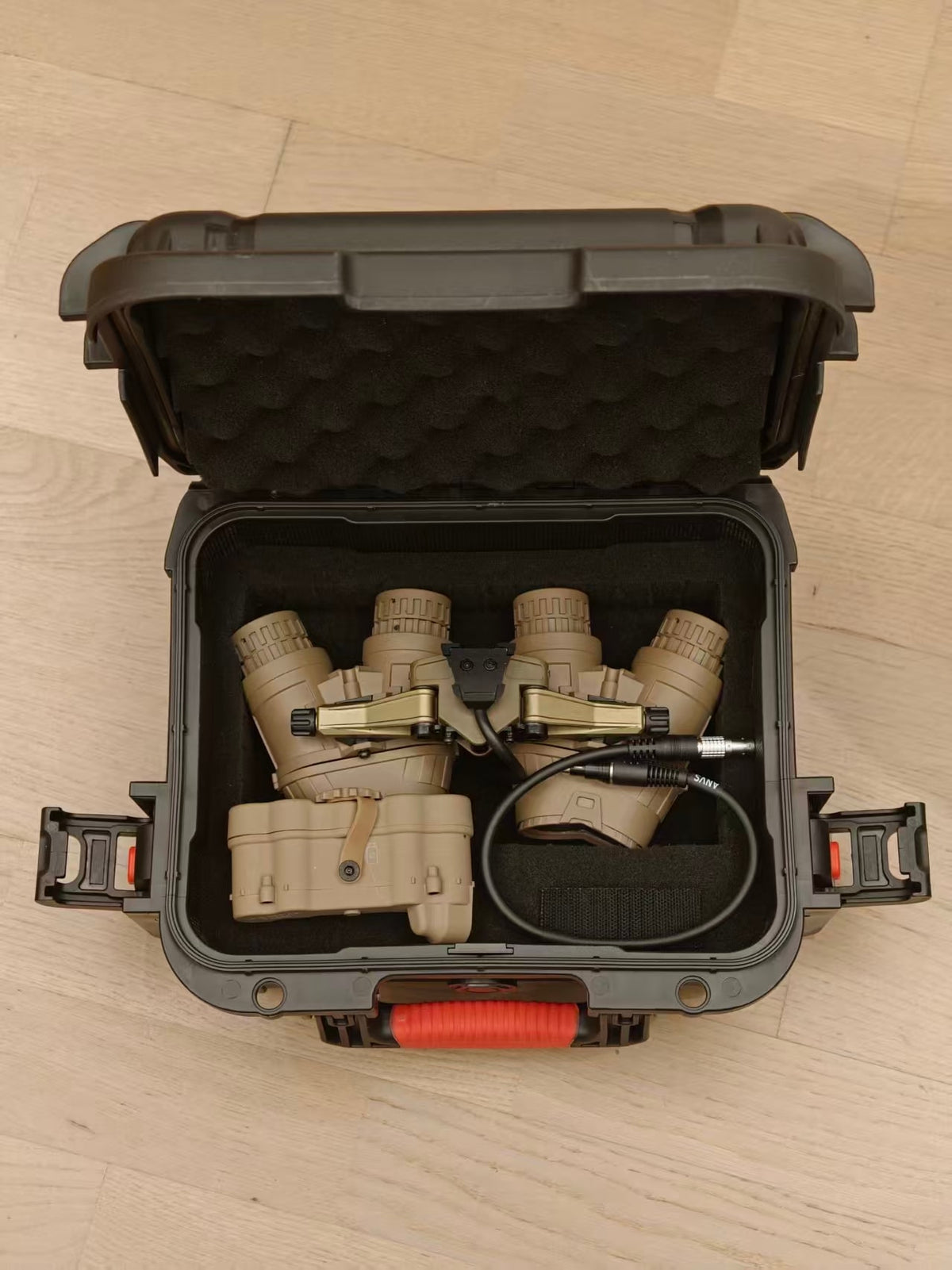

Packaging example: Complete quad-tube systems are supplied in the fitted hard case shown. The device and accessory arrangement in the photograph are illustrative; the selected model and configuration will be supplied.
Discuss your build
Contact Kaelor Works for help choosing your tube configuration or to discuss specific build requirements.
