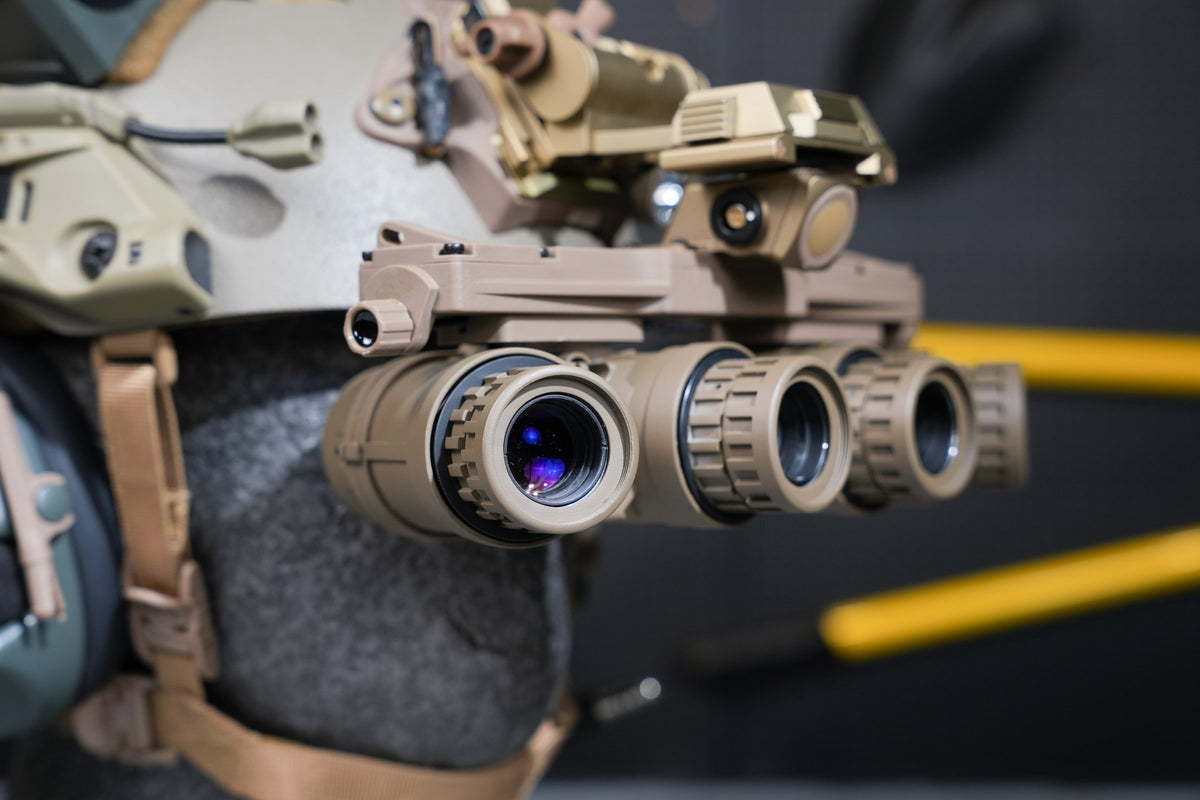

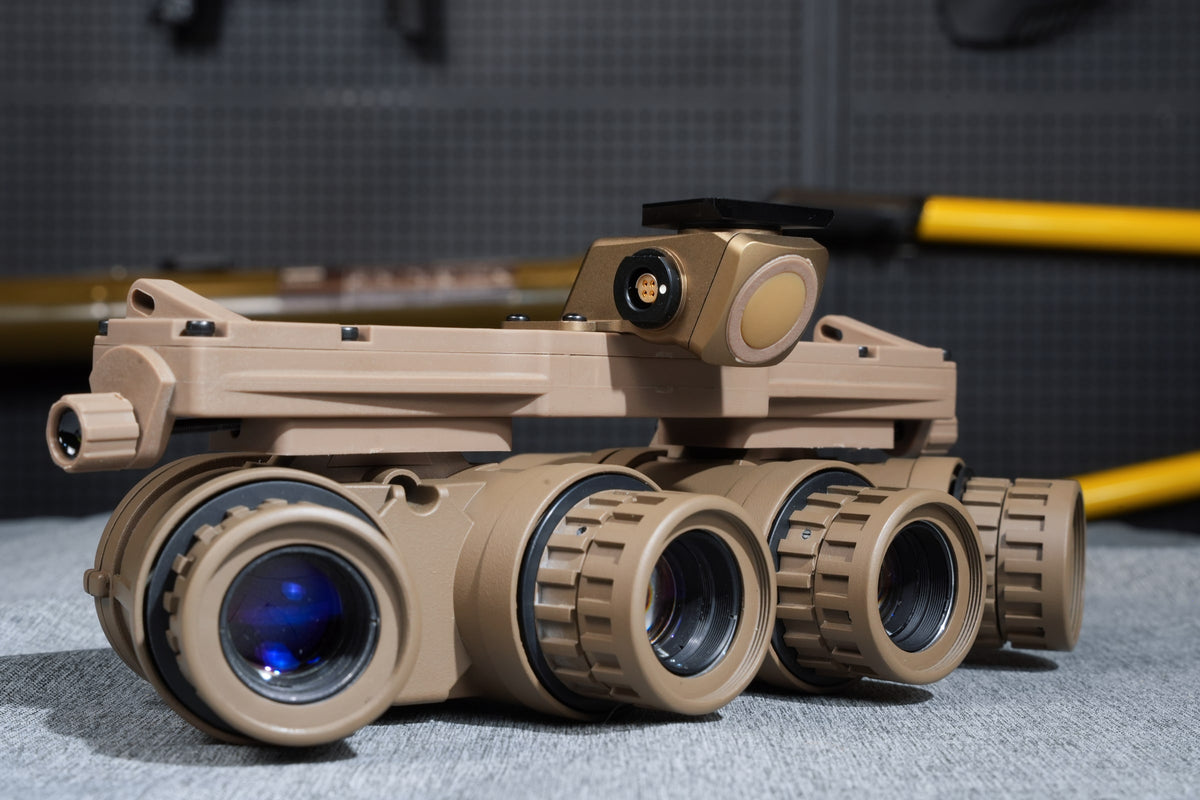

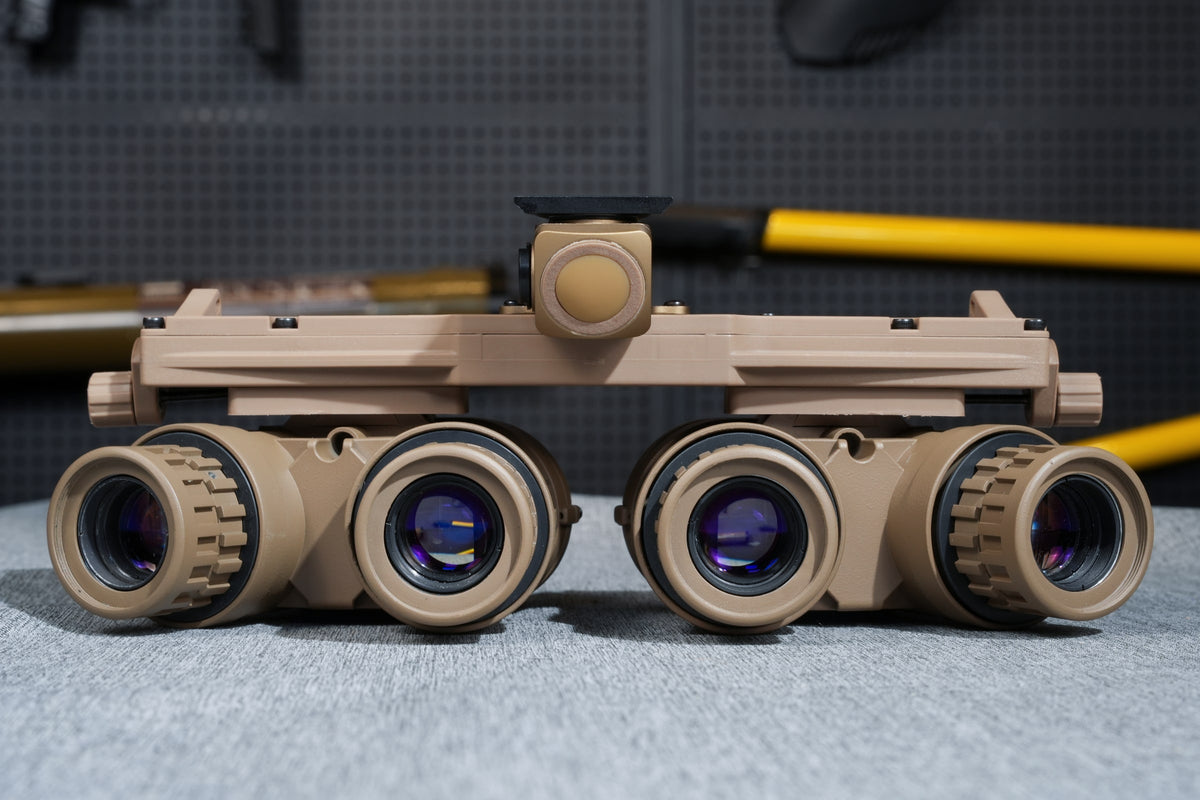

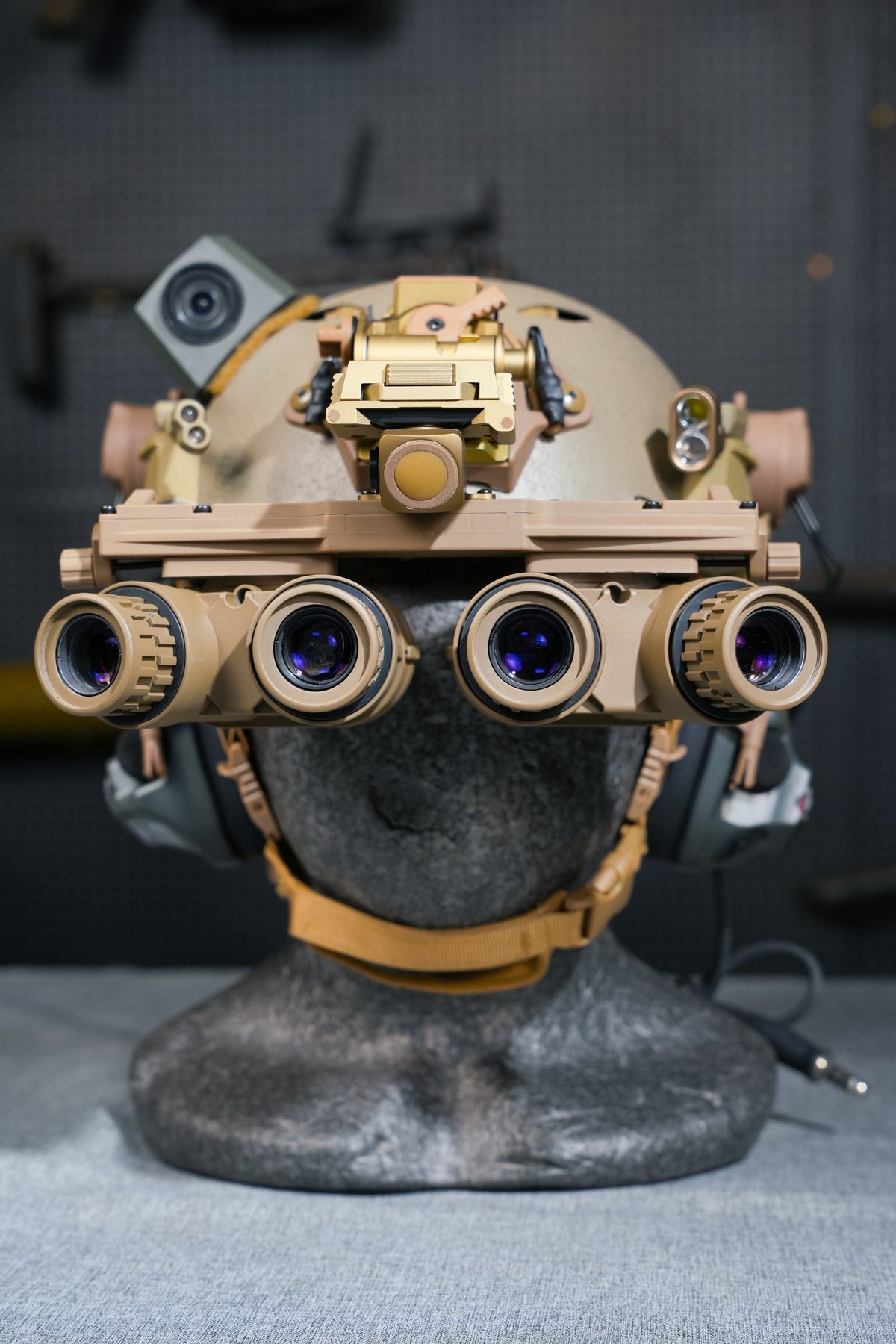

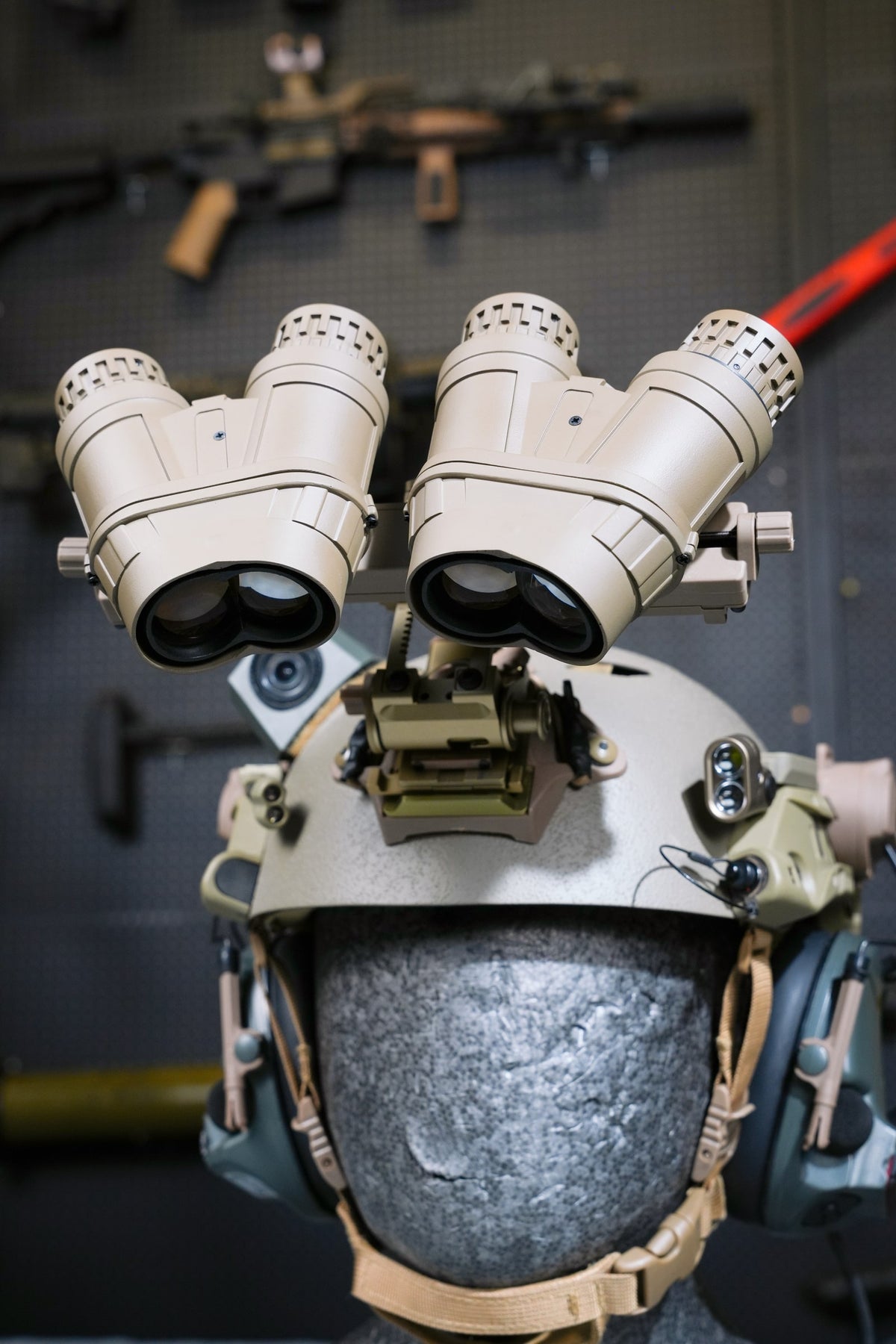

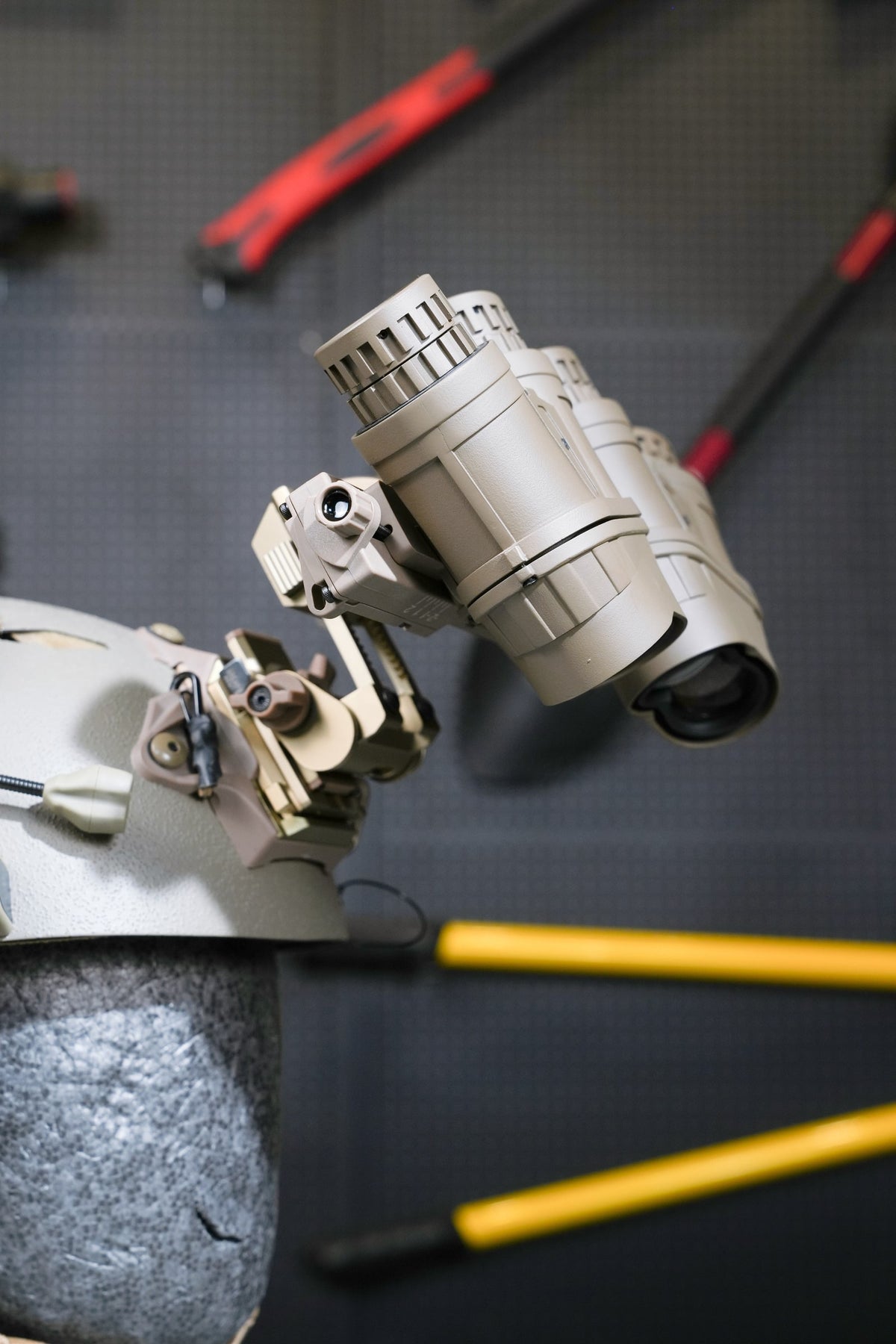

Kaelor KPNVG-18 Dovetail Quad-Tube Panoramic Night Vision

The Kaelor KPNVG-18 is a LAN18-platform quad-tube panoramic night vision goggle, also described as a panoramic NVG or pano NVG. Four 18 mm image intensifier tubes provide a central binocular view with extended peripheral coverage.

The four-tube panoramic layout provides an approximately 98 × 42-degree field of view at 1× magnification, with black or tan housing and the BNVIS dovetail mount interface.

Construction uses engineering polymer across the central bridge assembly, main body and optical pod housings.

Built to order - approximately 7 days before dispatch. This preparation period covers component sourcing, assembly, collimation, functional testing and order preparation. It is not a delivery estimate.

Gen 3 GaAs tube options

The NNVT Gen 3 options use gallium arsenide (GaAs) photocathodes, a different photocathode technology from the multialkali designs commonly associated with Gen 2 and Gen 2+ tubes. This GaAs specification applies to the Gen 3 configurations only, not to the NNVT4 or NNVT6L Gen 2+ options on this page.

Tube generation and phosphor colour are separate specifications. FOM combines resolution and signal-to-noise ratio, but does not describe photocathode material or full spectral response. The supplied tube configuration is the option selected when ordering; individual tube data and actual lighting conditions remain important.

Tube configurations

• NNVT4 GEN2+ green phosphor, FOM 1400.
• NNVT6L GEN2+ white phosphor, FOM 1600.
• NNVT Gen 3 green phosphor, FOM 1800+.
• NNVT Gen 3 white phosphor, FOM 1800+.
• Individual tube data sheets are supplied with the completed device.
• FOM 2000+ and other specific tube requirements may be available by request.

Optical specifications

• Platform designation: LAN18 quad-tube panoramic night vision device.
• Tube format: four 18 mm image intensifier tubes.
• Field of view: approximately 98 × 42 degrees.
• Magnification: 1×.
• Optical distortion: less than 0.5%.
• Relative illumination: greater than 75%.
• Lens coating: multilayer broadband coating.
• Objective system: 25 mm f/1.4.
• Focus: manual, 0.3 m to infinity.
• Eye relief: approximately 30 mm.
• Exit pupil: approximately 8 mm.
• Eyepiece: fixed-focus; no user dioptre adjustment.
• Interpupillary adjustment: 50-85 mm with manual lock.

Housing and environmental specifications

• Construction: engineering polymer central bridge assembly, main body and optical pod housings.
• Housing colours: black or tan.

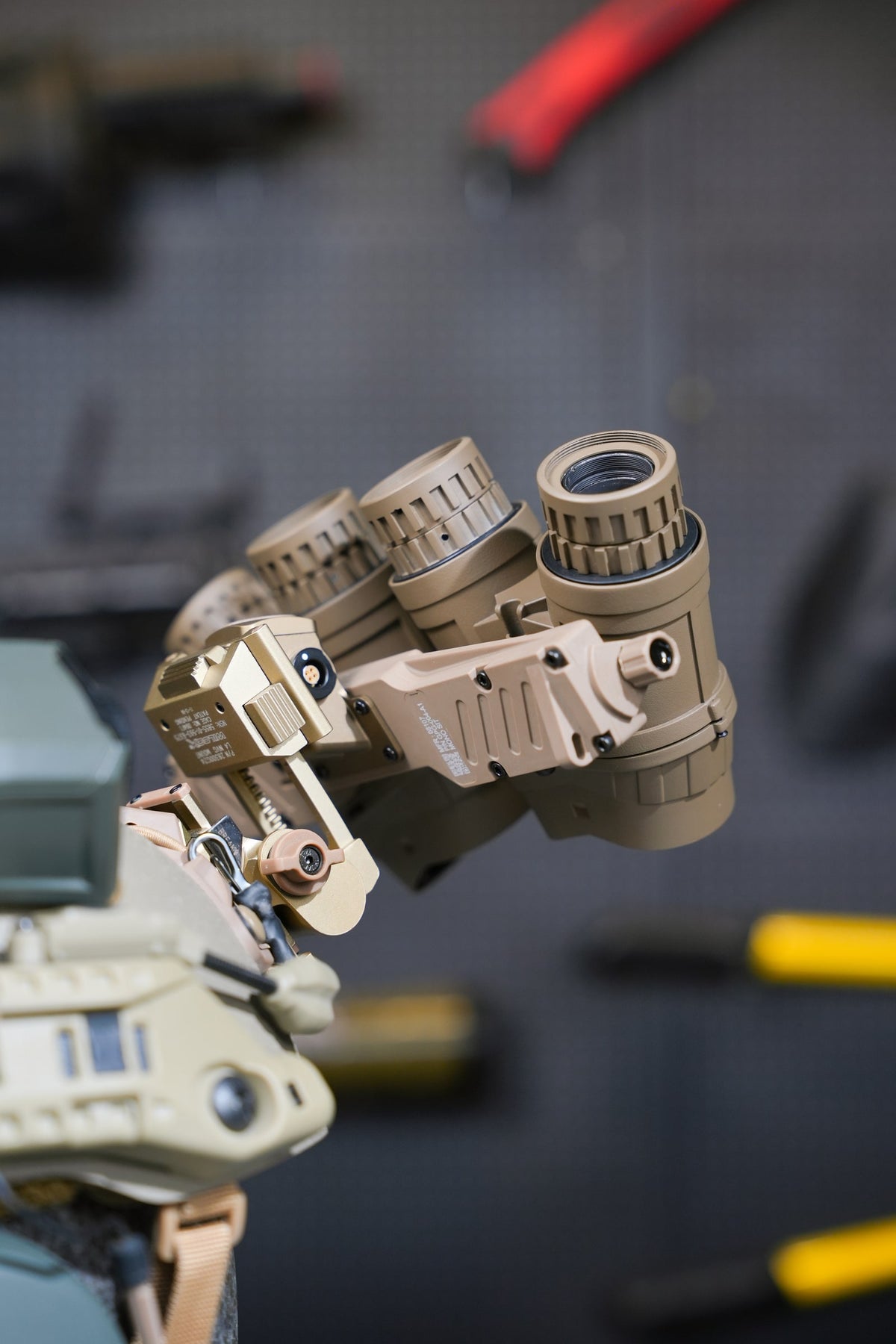

• Mount interface: BNVIS dovetail.
• Mount compatibility: compatible with G24-style dovetail mounts.
• Dimensions: approximately 225 × 105 × 85 mm.
• Weight: approximately 800 g.
• Ingress protection: IP66.
• Published operating range: -20 to +50 degrees C.
• Published humidity range: 5% to 95%.

Power

• Operating voltage: 3 V.
• Power source: included external battery pack and cable.
• Reference runtime: approximately 20 hours with the external battery pack.

What's included

• KPNVG-18 in the selected configuration.
• External battery pack and power cable.
• Protective lens covers.
• Mount-interface hardware and adjustment tool.
• Fitted hard protective case.
• Individual tube test documentation.

Packaging example: Complete quad-tube systems are supplied in the fitted hard case shown. The device and accessory arrangement in the photograph are illustrative; the selected model and configuration will be supplied.

Discuss your build

Contact Kaelor Works before ordering if you need FOM 2000+, a particular tube specification or help choosing the housing and tube options.
