Brand new
-
-
-
-
-
-
-
-
-
Kaelor Works
PVS-14 NNVT Gen 3 Green Phosphor Monocular - FOM 1600

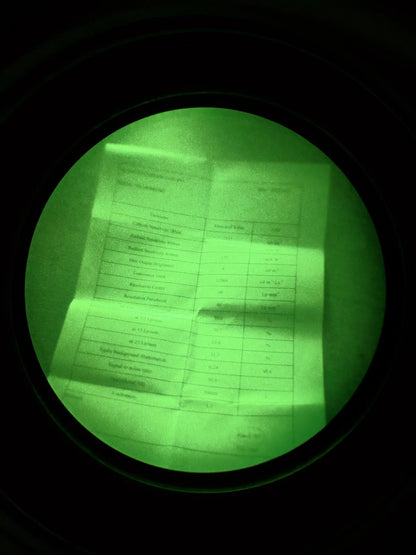

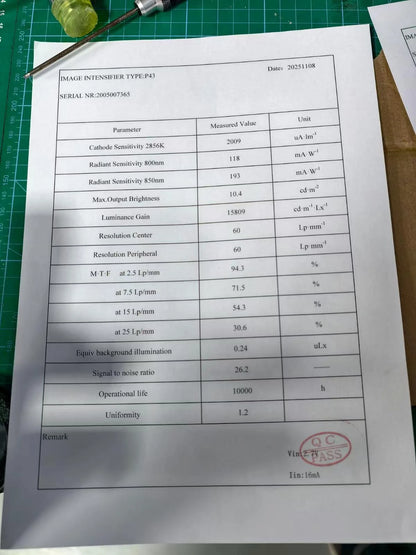

A PVS-14-pattern analogue night vision monocular built around an ARGUS PVS-14 housing and fitted with an NNVT Gen 3 green phosphor image intensifier tube. The supplied tube sheet records 60 lp/mm resolution and a signal-to-noise ratio of 26.2, giving a calculated FOM of 1572 and a rounded specification of approximately 1600 FOM. The tube is autogated, includes automatic brightness control and is supplied with factory QC documentation.
Gen 3 GaAs photocathode technology
The fitted NNVT Gen 3 image intensifiers use gallium arsenide (GaAs) photocathodes. This is a different photocathode technology from the multialkali designs commonly associated with Gen 2 and Gen 2+ tubes. The photocathode converts incoming light into electrons before amplification in the microchannel plate.
Gen 3 describes the tube technology; green or white phosphor describes the colour of the output screen. Similar FOM values do not make Gen 2+ and Gen 3 tubes technologically identical: FOM combines resolution and signal-to-noise ratio, but does not describe photocathode material or full spectral response. Actual image performance also depends on the individual tube specifications, optics and lighting conditions.
Key features
- Green phosphor NNVT Gen 3 tube.
- Approximately 1600 FOM, supported by the individual tube sheet.
- Autogated operation with automatic brightness control.
- ARGUS PVS-14 housing.
- Yi'an PVS-14-compatible objective and eyepiece optics.
- Factory birth sheet / QC paper included.
Technical specifications
- Tube: NNVT Gen 3 green phosphor.
- FOM: 1572 calculated; approximately 1600.
- Resolution: 60 lp/mm.
- Signal-to-noise ratio: 26.2.

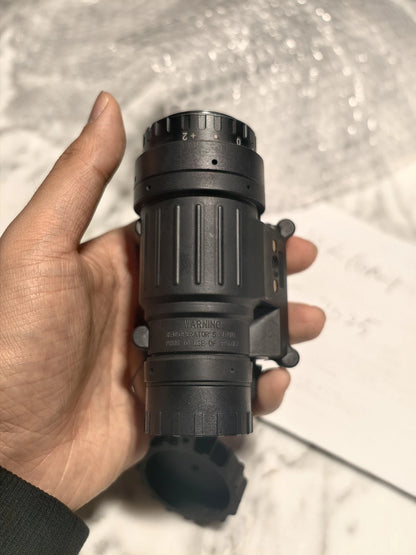

- Housing: ARGUS PVS-14 housing.

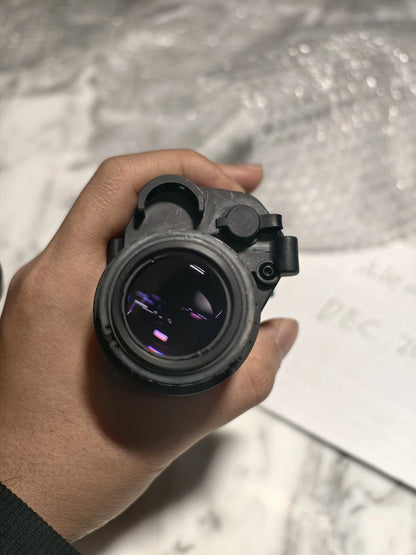

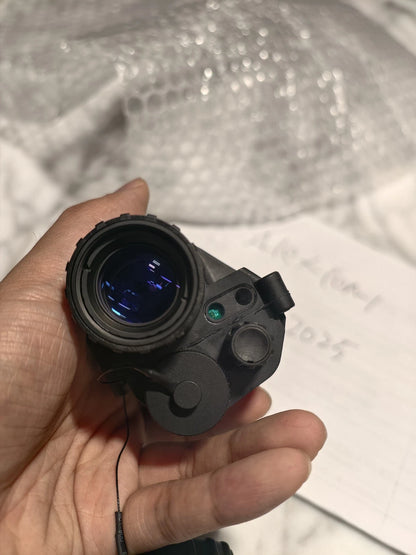

- Optics: Yi'an PVS-14-compatible objective and eyepiece lens set.
- Autogated: yes.
- Automatic brightness control: yes.
- Format: analogue night vision monocular.
Complimentary lens protection
Sacrificial lens protectors are available free of charge on request and are not included by default. Select the complimentary lens-protector option above when ordering to add your request to the order. The gallery image is a reference photo; protector design and fitment vary by model. We will confirm suitable fitment for your model before dispatch.
Professional Assembly & QC
Every complete device undergoes the following before dispatch:
- Controlled-environment assembly and optical cleaning
- Infinity focus and dioptre calibration
- Complete system and functional testing
