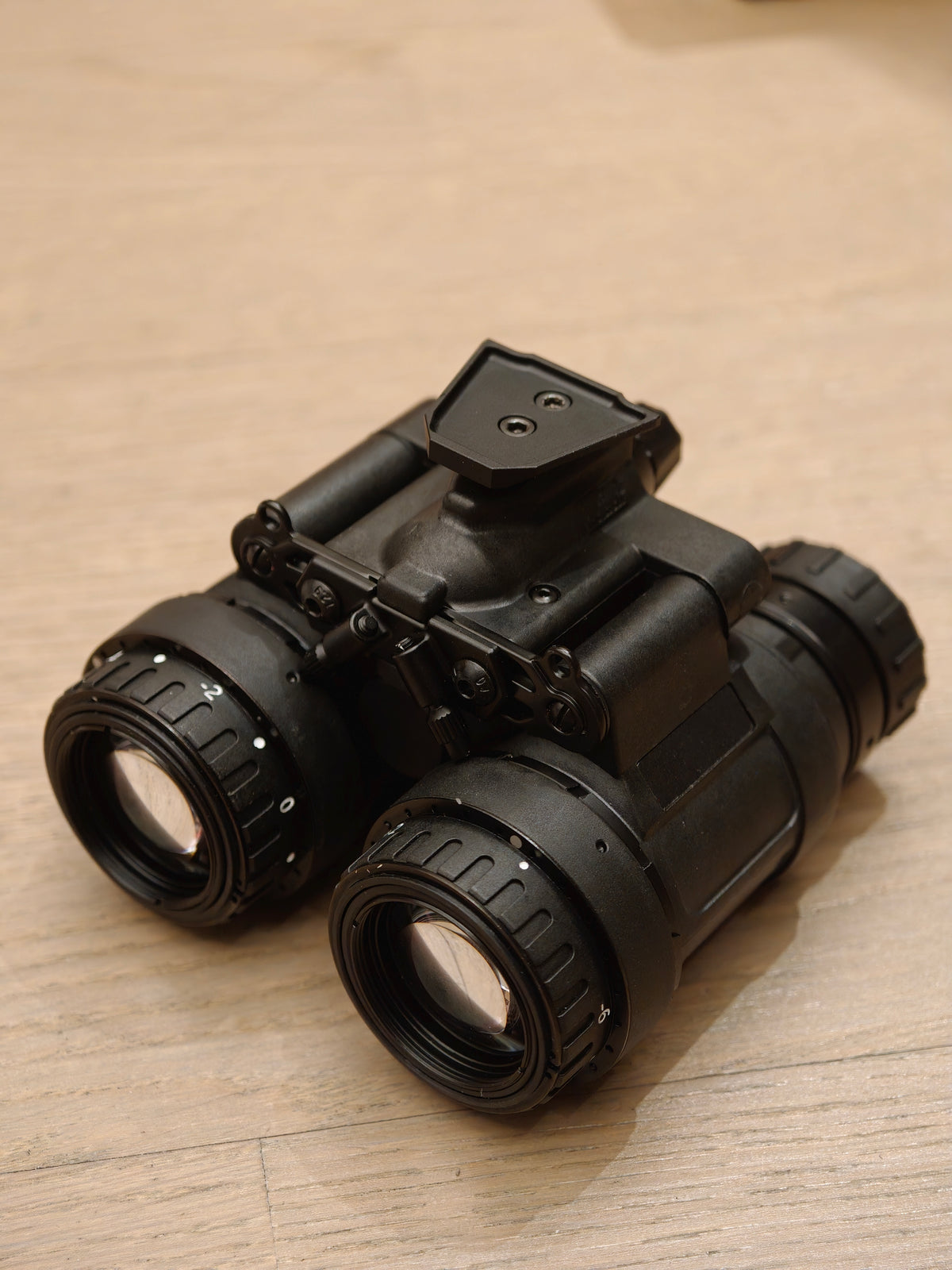

TCX1 Night Vision Binocular - ATOM GEN2+ White Phosphor FOM 1600

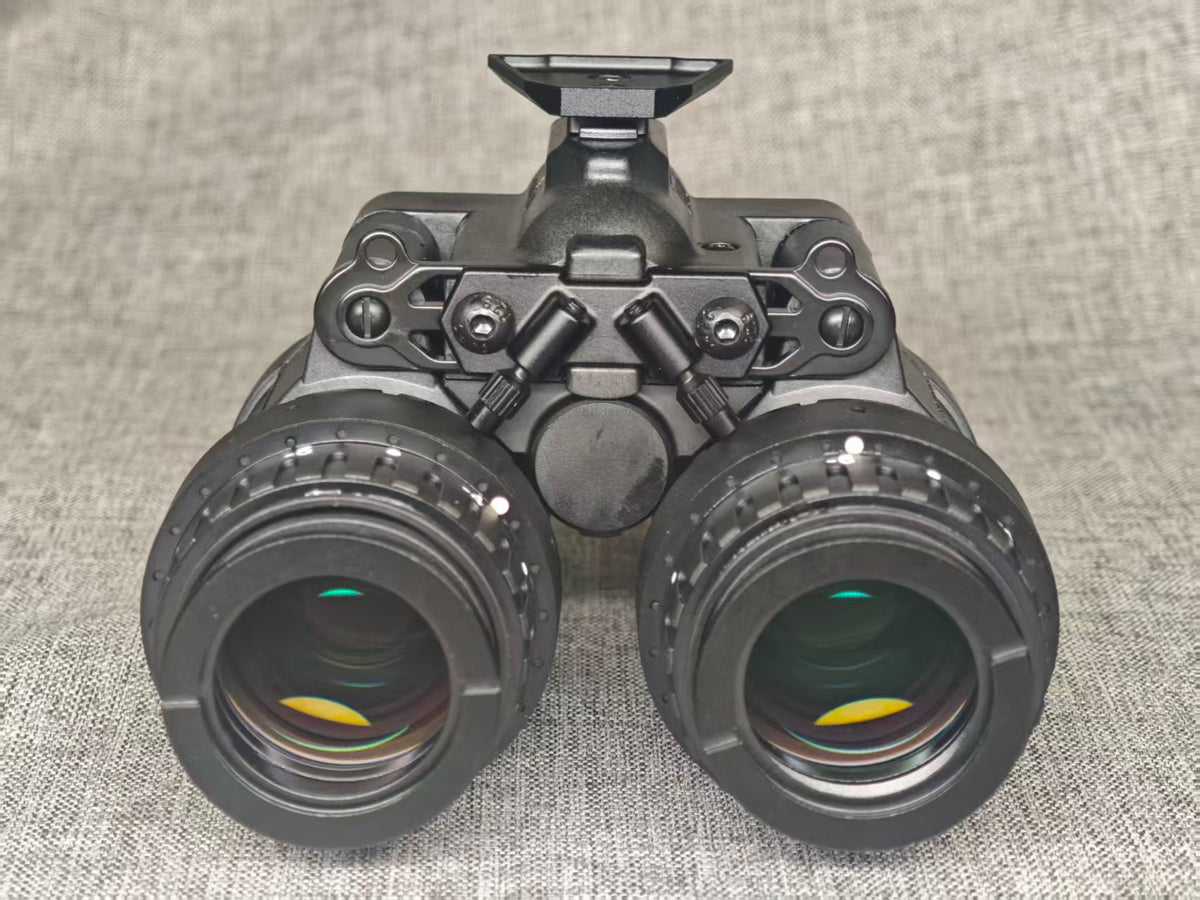

A genuine TCX1 analogue night vision binocular configured with a matched pair of ATOM GEN2+ white phosphor FOM 1600 tubes and Norinco LW40 optics.

Key features

• Dual-tube analogue night vision with matched ATOM GEN2+ white phosphor tubes.
• FOM 1600 tube specification and Norinco LW40 PVS-14-format objective and eyepiece assemblies.
• Manual gain adjustment alongside the tubes' Automatic Brightness Control (ABC).
• Built-in IR illuminator with an IR-on status indicator.
• Low-battery warning.
• Individual pod shut-off when a pod is flipped up.

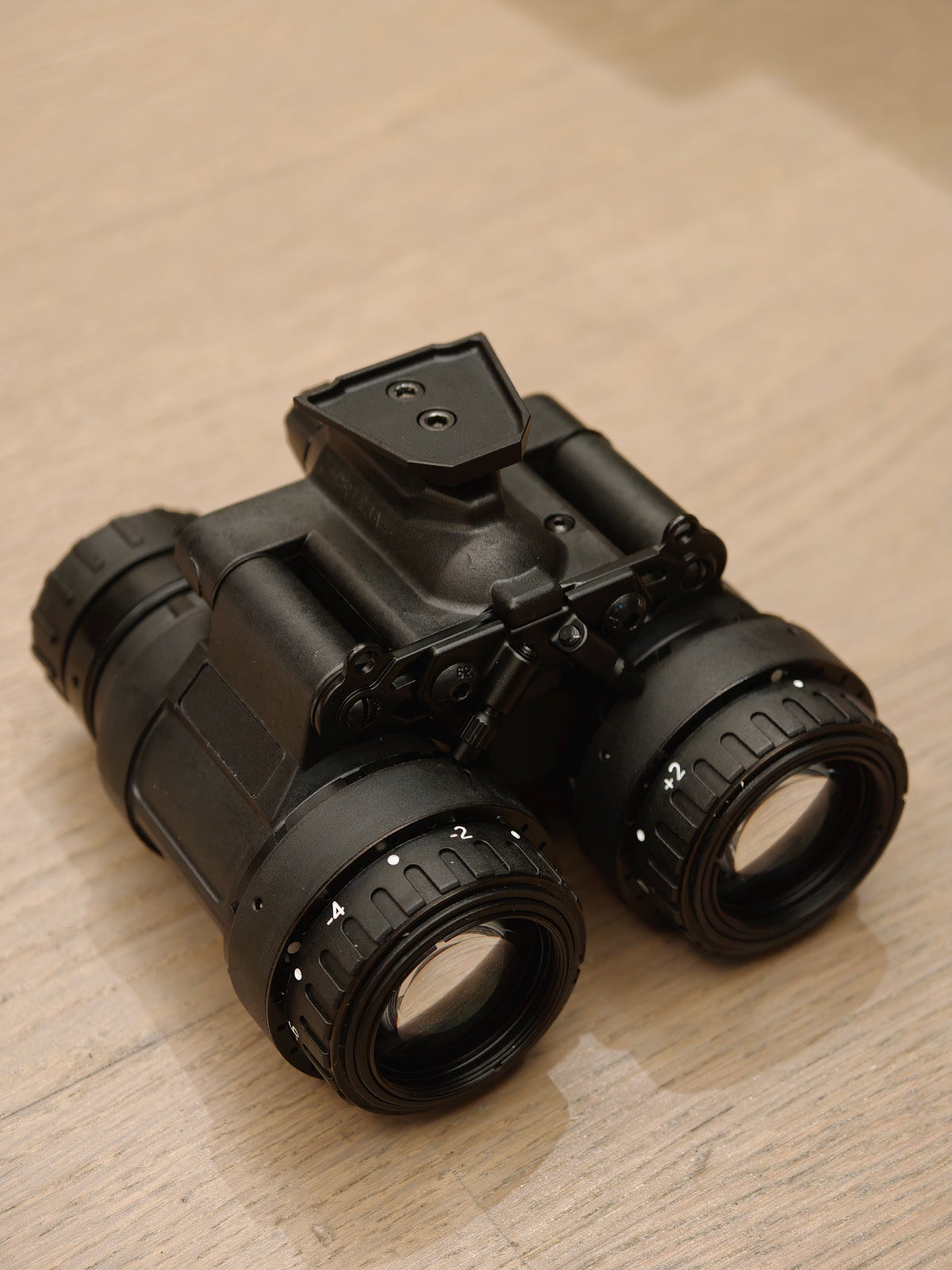

• Adjustable interpupillary distance (IPD) with locking stops, so the pods return to your preset viewing position after being raised.
• Compatible with an external battery pack using the appropriate Fischer-type connection; confirm the pack and cable specification before purchase.
• Weight: approximately 547 g, including image intensifier tubes and battery.

Optical and tube configuration

• Tubes: matched ATOM GEN2+ white phosphor pair.
• FOM: 1600.
• Magnification: 1x.
• Field of view: 40 degrees.

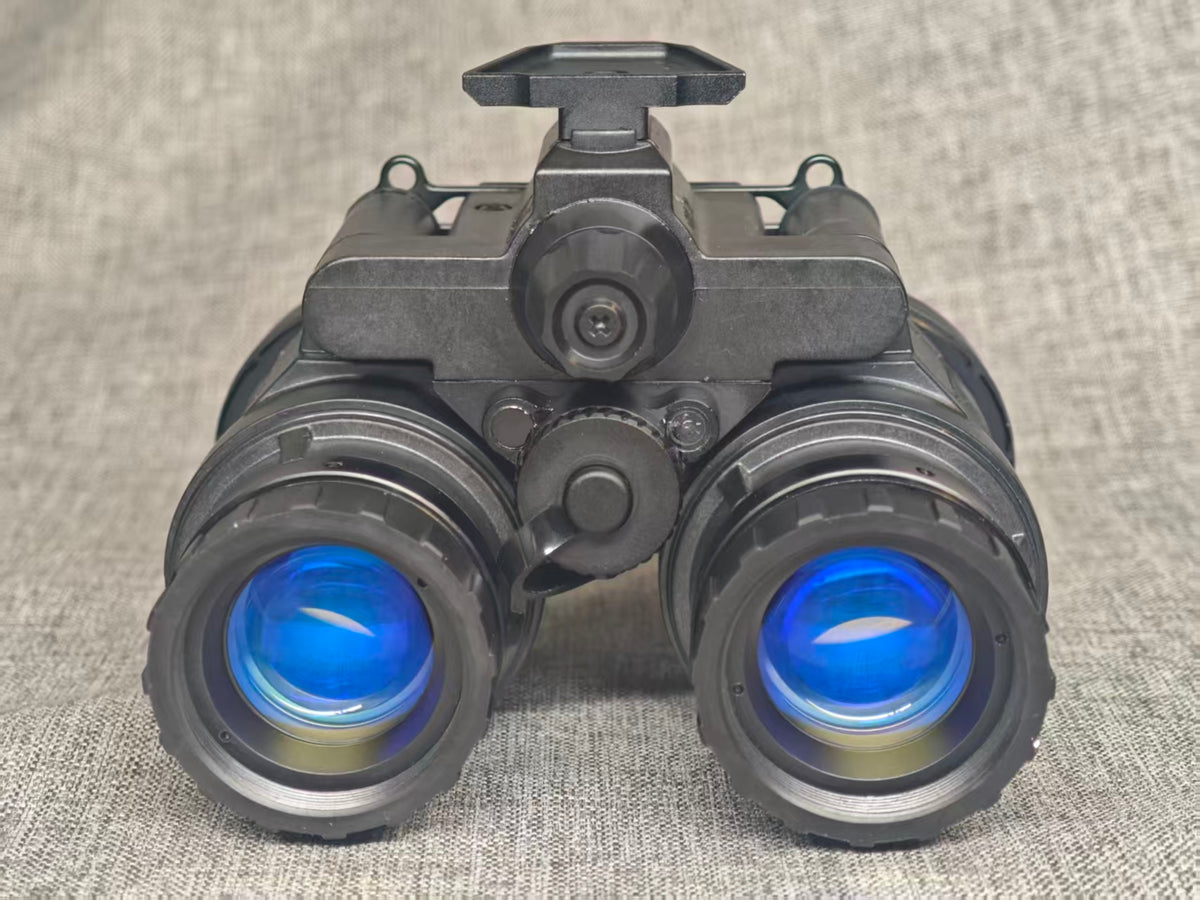

• Manual objective focus and adjustable eyepiece dioptre.

Startup & Brightness Adaptation

The TC-X1 features a controlled startup system designed to manage power consumption from its single AA battery. The two image intensifier tubes are powered on sequentially, so one side may illuminate slightly earlier than the other.

ATOM image intensifier tubes also feature Automatic Brightness Control (ABC), which gradually adjusts image brightness when ambient lighting conditions change.

Both initial startup and brightness adjustment following sudden lighting changes typically take approximately 2–3 seconds to stabilise.

Once stabilised, the system delivers a clear and consistent image under steady lighting conditions. These response characteristics are normal for the current configuration, as confirmed by the manufacturer.

Professional Assembly & QC

Each complete device is assembled and checked before dispatch:

• Controlled-environment assembly and optical cleaning.
• Matched white phosphor image intensifier tube pair.
• Infinity focus and dioptre calibration.
• Individual binocular collimation using dedicated equipment.
• Complete system and functional testing.

Complimentary lens protection

Sacrificial lens protectors are available free of charge on request and are not included by default. Select the complimentary lens-protector option above when ordering to add your request to the order. The gallery image is a reference photo; protector design and fitment vary by model. We will confirm suitable fitment for your model before dispatch.
